HEF4104B-Q100 - Quad low-to-high voltage translator

Description

The HEF4104B-Q100 is a quad low voltage-to-high voltage translator with 3-state outputs.

It provides the capability of interfacing low voltage circuits to high-voltage circuits.

Features

  • Automotive product qualification in accordance with AEC-Q100 (Grade 3).
  • Specified from 40 C to +85 C.
  • Fully static operation.
  • 5 V, 10 V, and 15 V parametric ratings.
  • Standardized symmetrical output characteristics.
  • Inputs and outputs are protected against electrostatic effects.
  • ESD protection:.
  • MIL-STD-883, method 3015 exceeds 2000 V.
  • HBM JESD22-A114F exceeds 2000 V.
  • MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 ).
  • Complies with JED.

📥 Download Datasheet

📁 Similar Datasheet

  • HEF4104B - Quadruple low to high voltage translator with 3-state outputs (NXP)
  • HEF4000B - Dual 3-input NOR gate and inverter (NXP)
  • HEF4001B - Quadruple 2-input NOR gate (NXP)
  • HEF4001B - Quadruple 2-input NOR gate (Philips)
  • HEF4001UB - Quadruple 2-input NOR gate (NXP)
  • HEF4002B - Dual 4-input NOR gate (NXP)
  • HEF4006B - 18-stage static shift register (NXP)
  • HEF4007UB - Dual complementary pair and inverter (NXP)
  • HEF4008B - 4-bit binary full adder (NXP)
  • HEF40097B - 3-state hex non-inverting buffer (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

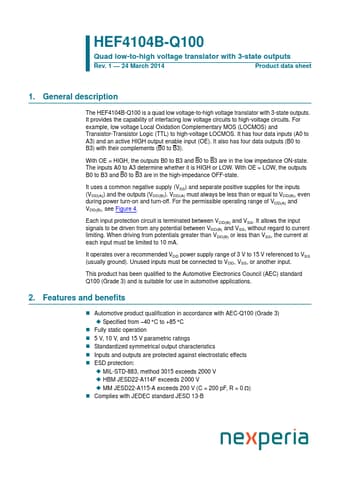

HEF4104B-Q100 Quad low-to-high voltage translator with 3-state outputs Rev. 1 — 24 March 2014 Product data sheet 1. General description The HEF4104B-Q100 is a quad low voltage-to-high voltage translator with 3-state outputs. It provides the capability of interfacing low voltage circuits to high-voltage circuits. For example, low voltage Local Oxidation Complementary MOS (LOCMOS) and Transistor-Transistor Logic (TTL) to high-voltage LOCMOS. It has four data inputs (A0 to A3) and an active HIGH output enable input (OE). It also has four data outputs (B0 to B3) with their complements (B0 to B3). With OE = HIGH, the outputs B0 to B3 and B0 to B3 are in the low impedance ON-state. The inputs A0 to A3 determine whether it is HIGH or LOW.
