LSF0101 Datasheet - nexperia

LSF0101, 1-bit bidirectional multi-voltage level translator

The LSF0101 is an 1 channel bidirectional multi-voltage level translator for open-drain and push-pull applications. It supports up to 100 MHz up translation and ≥ 100 MHz down translation at ≤ 30 pF capacitive load. There is no need for a direction pin which minimizes system effort. The LSF0101 supp.

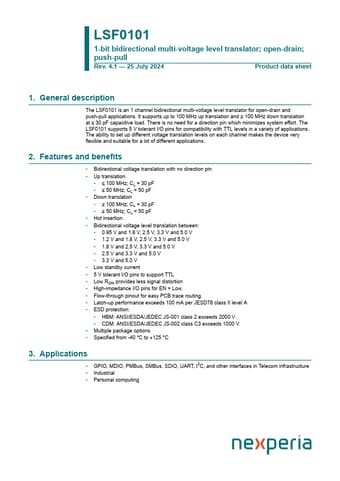

 Datasheet Preview Page 1

LSF0101-nexperia.pdf

Preview of LSF0101 PDF

Datasheet Details

Part number:

LSF0101

Manufacturer:

nexperia ↗

File Size:

222.81 KB

Description:

1-bit bidirectional multi-voltage level translator

LSF0101 Features

* Bidirectional voltage translation with no direction pin

* Up translation

* ≤ 100 MHz; CL = 30 pF

* ≤ 50 MHz; CL = 50 pF

* Down translation

* ≥ 100 MHz; CL = 30 pF

* ≥ 50 MHz; CL = 50 pF

* Hot insertion

* Bidirectional voltage
