PMPB48EP - P-channel MOSFET

Description

P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

  • Trench MOSFET technology.
  • Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm.
  • Exposed drain pad for excellent thermal conduction.
  • Tin-plated 100 % solderable side pads for optical solder inspection 1.3.

📥 Download Datasheet

📁 Similar Datasheet

  • PMPB48EP - single P-channel Trench MOSFET (NXP)
  • PMPB40SNA - 60V N-channel Trench MOSFET (NXP)
  • PMPB43XPE - P-Channel MOSFET (NXP)
  • PMPB47XP - single P-channel Trench MOSFET (NXP)
  • PMPB10XNE - single N-channel Trench MOSFET (NXP)
  • PMPB11EN - 30V N-channel Trench MOSFET (NXP)
  • PMPB12UN - 20V single N-channel Trench MOSFET (NXP Semiconductors)
  • PMPB13XNE - single N-channel Trench MOSFET (NXP)
  • PMPB15XN - single N-channel Trench MOSFET (NXP Semiconductors)
  • PMPB15XP - single P-channel Trench MOSFET (NXP)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

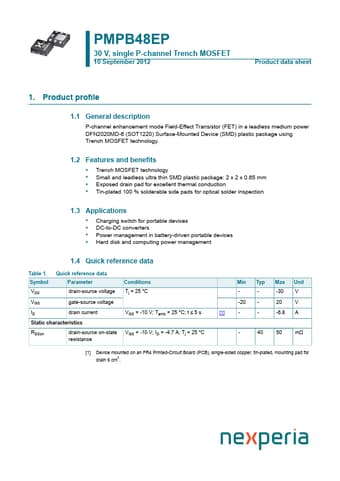

PMPB48EP 30 V, single P-channel Trench MOSFET 10 September 2012 Product data sheet 1. Product profile 1.1 General description P-channel enhancement mode Field-Effect Transistor (FET) in a leadless medium power DFN2020MD-6 (SOT1220) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology. 1.2 Features and benefits • Trench MOSFET technology • Small and leadless ultra thin SMD plastic package: 2 x 2 x 0.65 mm • Exposed drain pad for excellent thermal conduction • Tin-plated 100 % solderable side pads for optical solder inspection 1.3 Applications • Charging switch for portable devices • DC-to-DC converters • Power management in battery-driven portable devices • Hard disk and computing power management 1.4 Quick reference data Table 1.
