PTVS64VS1UR - 400W Transient Voltage Suppressor

Download the PTVS64VS1UR datasheet PDF (PTVS3V3S1UR included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for 400w transient voltage suppressor.

Description

400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection.

Features

  • Rated peak pulse power: PPPM = 400 W (350 W for 3V3).
  • Reverse standoff voltage range: VRWM = 3.3 V to 64 V.
  • Reverse current: IRM = 0.001 μA.
  • Small plastic package suitable for surface-mounted design.
  • Very low package height: 1 mm.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PTVS3V3S1UR-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PTVS64VS1UR
Manufacturer nexperia
File Size 656.56 KB
Description 400W Transient Voltage Suppressor
Datasheet download datasheet PTVS64VS1UR Datasheet

📁 Similar Datasheet

Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

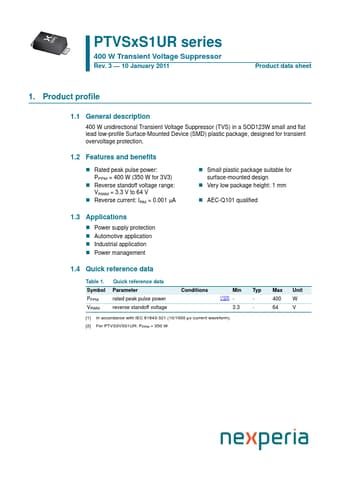

PTVSxS1UR series 400 W Transient Voltage Suppressor Rev. 3 — 10 January 2011 Product data sheet 1. Product profile 1.1 General description 400 W unidirectional Transient Voltage Suppressor (TVS) in a SOD123W small and flat lead low-profile Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection. 1.2 Features and benefits „ Rated peak pulse power: PPPM = 400 W (350 W for 3V3) „ Reverse standoff voltage range: VRWM = 3.3 V to 64 V „ Reverse current: IRM = 0.001 μA „ Small plastic package suitable for surface-mounted design „ Very low package height: 1 mm „ AEC-Q101 qualified 1.3 Applications „ Power supply protection „ Automotive application „ Industrial application „ Power management 1.4 Quick reference data Table 1.
