PTVS7V0P1UTP - High-temperature 600W Transient Voltage Suppressor

Download the PTVS7V0P1UTP datasheet PDF. This datasheet also covers the PTVS3V3P1UTP variant, as both devices belong to the same high-temperature 600w transient voltage suppressor family and are provided as variant models within a single manufacturer datasheet.

Description

600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications.

Features

  • Rated peak pulse power: PPPM = 600 W.
  • High temperature stability Tj  185 C.
  • Reverse standoff voltage range:.
  • Small plastic package suitable for VRWM = 3.3 V to 64 V.
  • Reverse current: IRM = 0.001 A.
  • Very low package height: 1 mm surface-mounted design.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (PTVS3V3P1UTP-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number PTVS7V0P1UTP
Manufacturer Nexperia
File Size 650.47 KB
Description High-temperature 600W Transient Voltage Suppressor
Datasheet download datasheet PTVS7V0P1UTP Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
PTVS7V0P1UP 600 W Transient Voltage Suppressor NXP
PTVS7V0S1UR 400W Transient Voltage Suppressor NXP
PTVS7V5P1UP 600 W Transient Voltage Suppressor NXP
PTVS7V5S1UR 400W Transient Voltage Suppressor NXP
PTVS7V5U1UPA 300 W Transient Voltage Suppressor NXP

Other Datasheets by Nexperia

Part Number Description
PTVS7V0P1UTP-Q High-temperature 600W Transient Voltage Suppressor
PTVS7V0P1UP 600W Transient Voltage Suppressor
PTVS7V0P1UP-Q 600W Transient Voltage Suppressor
PTVS7V0S1UR 400W Transient Voltage Suppressor
PTVS7V0S1UR-Q 400W Transient Voltage Suppressor

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

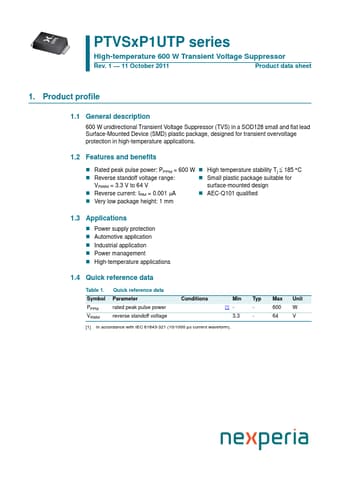

PTVSxP1UTP series High-temperature 600 W Transient Voltage Suppressor Rev. 1 — 11 October 2011 Product data sheet 1. Product profile 1.1 General description 600 W unidirectional Transient Voltage Suppressor (TVS) in a SOD128 small and flat lead Surface-Mounted Device (SMD) plastic package, designed for transient overvoltage protection in high-temperature applications. 1.2 Features and benefits  Rated peak pulse power: PPPM = 600 W  High temperature stability Tj  185 C  Reverse standoff voltage range:  Small plastic package suitable for VRWM = 3.3 V to 64 V  Reverse current: IRM = 0.001 A  Very low package height: 1 mm surface-mounted design  AEC-Q101 qualified 1.
