TDZ20J - Single Zener diodes

Download the TDZ20J datasheet PDF (TDZ2V4J included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for single zener diodes.

Description

General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package.

Features

  • Non-repetitive peak reverse power dissipation:  180 W.
  • Total power dissipation:  500 mW.
  • Very small plastic package suitable for surface-mounted design.
  • Low differential resistance.
  • AEC-Q101 qualified 1.3.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (TDZ2V4J-nexperia.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number TDZ20J
Manufacturer nexperia
File Size 762.48 KB
Description Single Zener diodes
Datasheet download datasheet TDZ20J Datasheet

📁 Similar Datasheet

  • TDZ20 - Zener Diode (Rohm)
  • TDZ22 - Zener Diode (Rohm)
  • TDZ24 - Zener Diode (Rohm)
  • TDZ27 - Zener Diode (Rohm)
  • TDZ10 - Zener Diode (Rohm)
  • TDZ11 - Zener Diode (Rohm)
  • TDZ12 - Zener Diode (Rohm)
  • TDZ13 - Zener Diode (Rohm)
  • TDZ15 - Zener Diode (Rohm)
  • TDZ16 - Zener Diode (Rohm)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

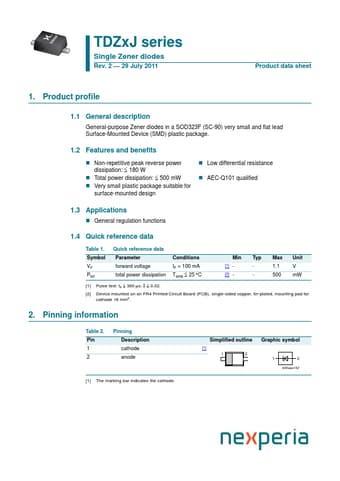

TDZxJ series Single Zener diodes Rev. 2 — 29 July 2011 Product data sheet 1. Product profile 1.1 General description General-purpose Zener diodes in a SOD323F (SC-90) very small and flat lead Surface-Mounted Device (SMD) plastic package. 1.2 Features and benefits  Non-repetitive peak reverse power dissipation:  180 W  Total power dissipation:  500 mW  Very small plastic package suitable for surface-mounted design  Low differential resistance  AEC-Q101 qualified 1.3 Applications  General regulation functions 1.4 Quick reference data Table 1. Symbol VF Ptot Quick reference data Parameter forward voltage total power dissipation Conditions IF = 100 mA Tamb  25 C Min Typ Max Unit [1] - - 1.1 V [2] - - 500 mW [1] Pulse test: tp  300 s;   0.02.
