PF7708B

Single Channel WLED Driver

PF7708B Features

* Wide Input Range: 9V to 30V

* Current Mode Control

* 300mV Feedback Reference

* Short LED Protection

* Over Current Protection

* Over Temperature Protection

* Output Over Voltage Protection

* PWM Dimming Input

* 1000mA/-1500mA Output Driving Capability APPLICATI

PF7708B General Description

The PF7708B is a wide-input voltage range, singlechannel, boost WLED controller which can be operated from 9V to 30V. By using PF7708B, the low total BOM cost WLED driver can be achieved. PF7708B integrated the current mode PWM controller with a 1000mA/-1500mA output MOSFET driver and a Dimming Powe.

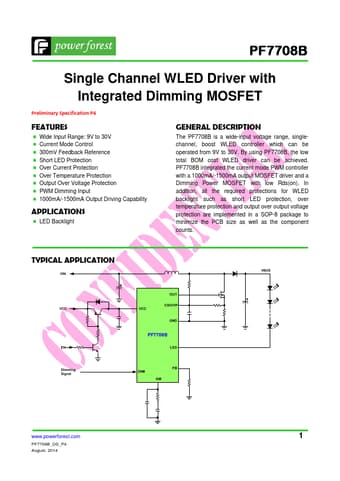

PF7708B Datasheet (82.80 KB)

Preview of PF7708B PDF

Datasheet Details

Part number:

PF7708B

Manufacturer:

powerforest

File Size:

82.80 KB

Description:

Single channel wled driver.
