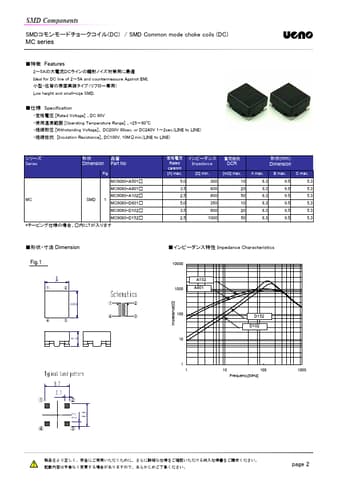

SMD Components
SMD(DC) / SMD Common mode choke coils (DC) MC series
■ Features
2～5ＡＤＣ Ideal for DC line of 2～5A and countermeasure Against EMI. （） Low height and small-size SMD.
■ Specification
[Rated Voltage] 、DC 80V [Operating Temperature Range] 、-25～80℃ [Withstanding Voltage]、 DC200V 60sec. or DC240V 1～2sec.(LINE to LINE) [Insulation Resistance]、DC100V, 10MΩmin.(LINE to LINE)
Series
Dimension
Fig
Part No
Rated carennt [A] max.
Impedance
[Ω] min.
DCR
[mΩ] max. A max.
(mm) Dimension
B max. C max.
MC9080-A501□ MC9080-A801□ MC SMD 1 MC9080-A102□ MC9080-D601□ MC9080-D102□ MC9080-D152□ *、□T
5.0 3.5 2.5 5.0 3.5 2.5
300 600 800 350 600 1000
10 20 50 10 20 50
8.3 8.3 8.3 8.3 8.3 8.3
9.5 9.5 9.5 9.5 9.5 9.5
5.3 5.3 5.3 5.3 5.3 5.3
■ Dimension Fig.
MC9080-A102x Datasheet
