3DLV3304VS1374 Datasheet - 3D Plus

3DLV3304VS1374, Low-voltage differential signaling Driver and Receiver MODULE

LVDS Driver and Receiver MODULE 4 Lines-SOP Low-voltage differential signaling Driver and Receiver 3DLV3304VS1374 MODULE 3V Quad Driver and Receive.
The 3DLV3304VS1374 is Quad CMOS differential line driver and Quad CMOS differential line receiver, designed for applications requiring ultra low power.

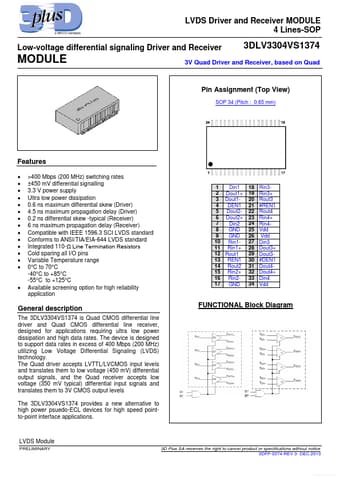

datasheet Preview Page 1 from Datasheet4u.com

3DLV3304VS1374-3DPlus.pdf

3DLV3304VS1374 Datasheet Preview — Preview of 3DLV3304VS1374 PDF

Datasheet Details

Part number:

3DLV3304VS1374

Manufacturer:

3D Plus

File Size:

161.89 KB

Description:

Low-voltage differential signaling Driver and Receiver MODULE

Features

* >400 Mbps (200 MHz) switching rates ±450 mV differential signalling 3.3 V power supply Ultra low power dissipation 0.6 ns maximum differential skew (Driver) 4.5 ns maximum propagation delay (Driver) 0.2 ns diff

Applications

* requiring ultra low power dissipation and high data rates. The device is designed to support data rates in excess of 400 Mbps (200 MHz) utilizing Low Voltage Differential Signaling (LVDS) technology. The Quad driver accepts LVTTL/LVCMOS input levels and translates them to low voltage (450 mV) differ
