ICO-326-S8X-T Datasheet - 3M

ICO-326-S8X-T DIP Socket

ICO-063-S8X-T ICO-083-S8X-T ICO-143-S8X-T ICO-163-S8X-T ICO-183-S8X-T ICO-203-S8X-T ICO-243-S8X-T ICO-246-S8X-T ICO-286-S8X-T ICO-326-S8X-T ICO-406-S8X-T ICO-486-S8X-T Dimension A 0.295 [7.49] .395 [10.03] .695 [17.65] .795 [20.19] .895 [22.73] .995 [25.27] 1.195 [30.35] 1.195 [30.35] 1.395 [35.43].

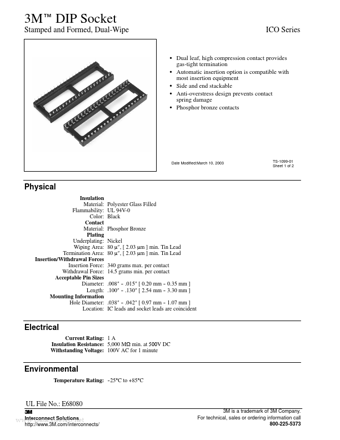

3M DIP Socket Stamped and Formed, Dual-Wipe ICO Series S Dual leaf, high compression contact provides gas-tight termination S Automatic insertion option is compatible with most insertion equipment S Side and end stackable S Anti-overstress design prevents contact spring damage S Phosphor bronze contacts Date Modified:March 10, 2003 TS-1099-01 Sheet 1 of 2 Physical Insulation Material: Flammability: Color: Contact Material: Plating Underplating: Wiping Area: Termination Area: Insertion/Withdr.

ICO-326-S8X-T Datasheet (484.54 KB)
