TPF111 - SD Video Filter Driver

Product Overview

📥 Download Datasheet

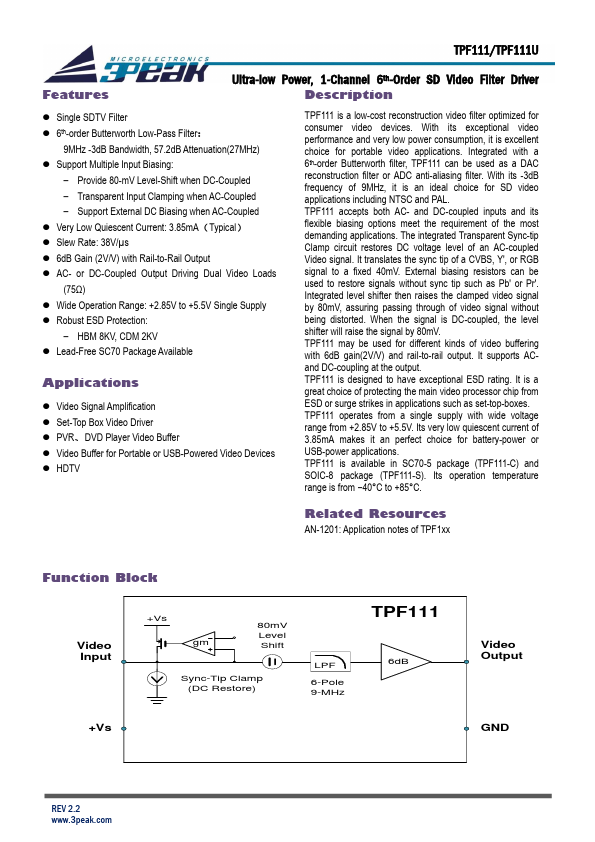

Datasheet preview – TPF111

Datasheet Details

Part number TPF111
Manufacturer 3PEAK
File Size 515.98 KB
Description SD Video Filter Driver
Datasheet download datasheet TPF111 Datasheet

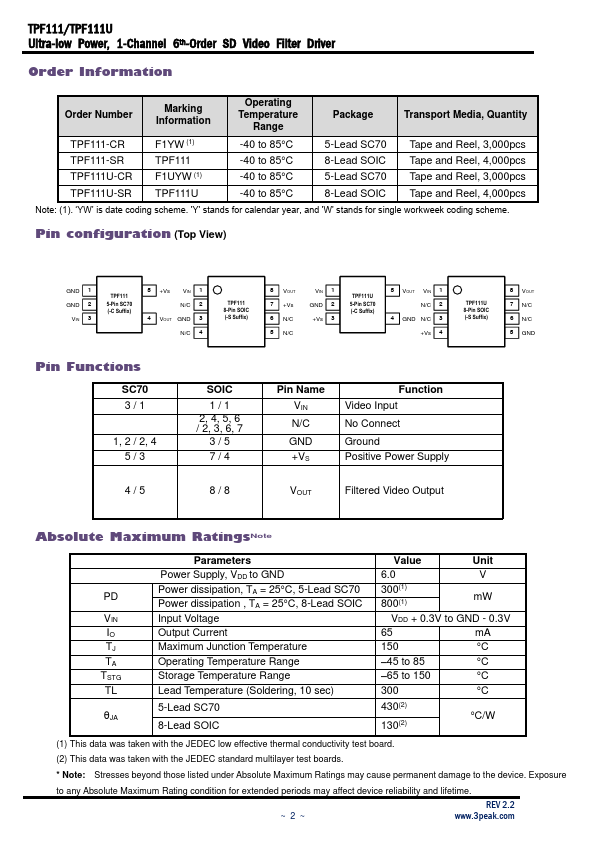

Additional preview pages of the TPF111 datasheet.

Product details

Description

Single SDTV Filter 6th-order Butterworth Low-Pass Filter： 9MHz -3dB Bandwidth, 57.2dB Attenuation(27MHz) Support Multiple Input Biasing: - Provide 80-mV Level-Shift when DC-Coupled - Transparent Input Clamping when AC-Coupled - Support External DC Biasing when AC-Coupled Very Low Quiescent Current: 3.85mA（Typical） Slew Rate: 38V/µ s 6dB Gain (2V/V) with Rail-to-Rail Output AC- or DC-Coupled Output Driving Dual Video Loads (75Ω) Wide Operation Rang

Features
