TPL700 - LDO

TPL700 Description

.

TPL700 Features

* Low Dropout Voltage:
* 170mV at 200mA
* 230mV at 300mA
* Maximum Output Current: 300mA
* Input Voltage Range: 2.1V to 5.5V
* ±2% Accuracy Overall Operating Conditions
* Low Quiescent and Shutdown Current
* Foldback Current Limit and Overheat Protection
* Stable

TPL700 Applications

* POS
* Handheld Devices Including Medical Handhelds
* U-Key
* Lower Cost Industrial and Instrumentation
* Battery Device TPL700 Series 300mA, Low Iq, LDO with foldback current TPL700 series product is a high performance and low dropout linear regulator. Current output capabilit

📥 Download Datasheet

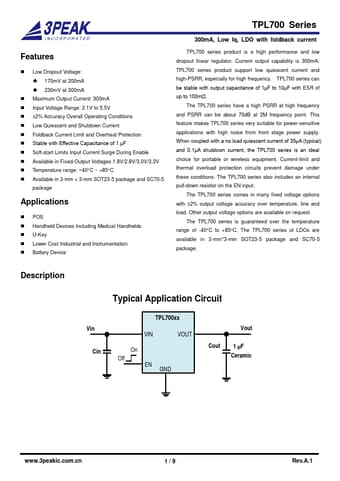

Preview of TPL700 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TPL700
Manufacturer
3PEAK
File Size
627.04 KB
Datasheet
TPL700-3PEAK.pdf
Description
LDO
