TPP302080 - 2-A Synchronous Step-Down Voltage Regulator

📥 Download Datasheet

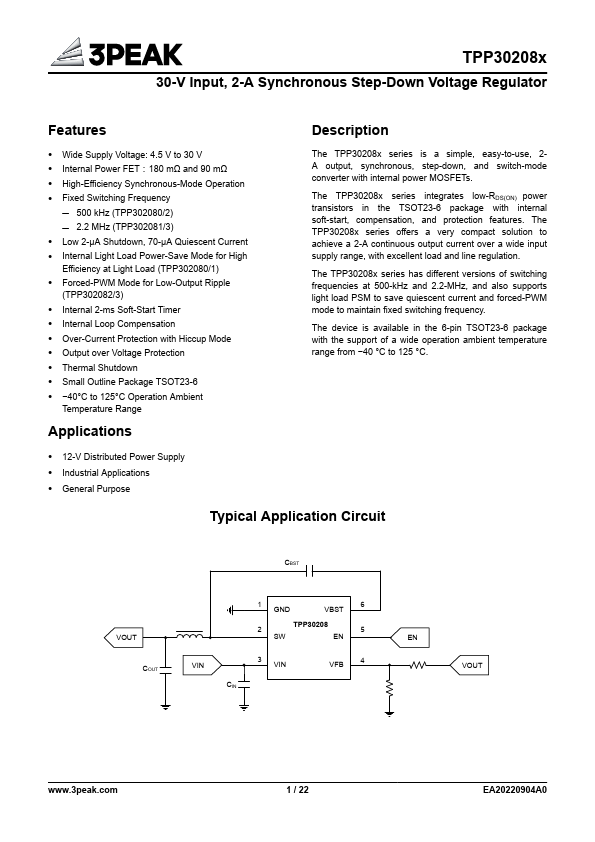

Preview of TPP302080 PDF

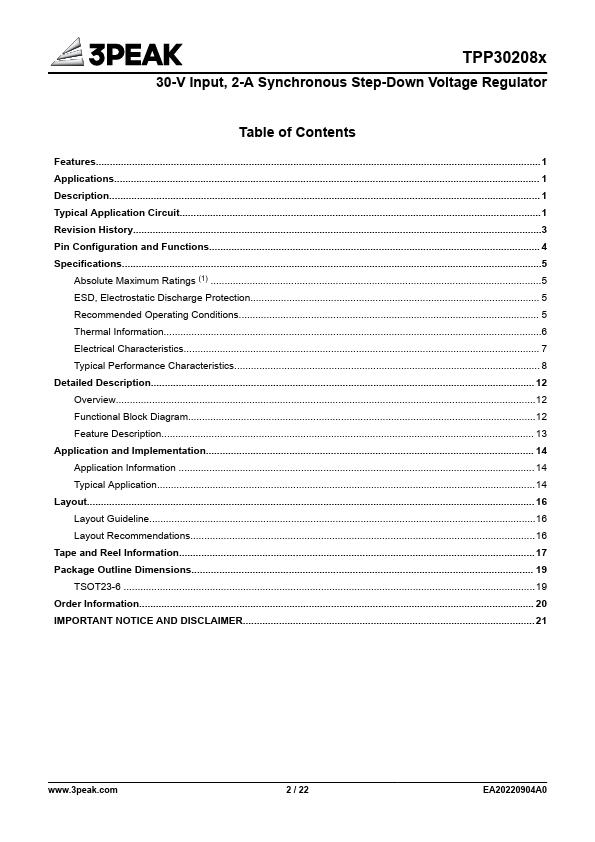

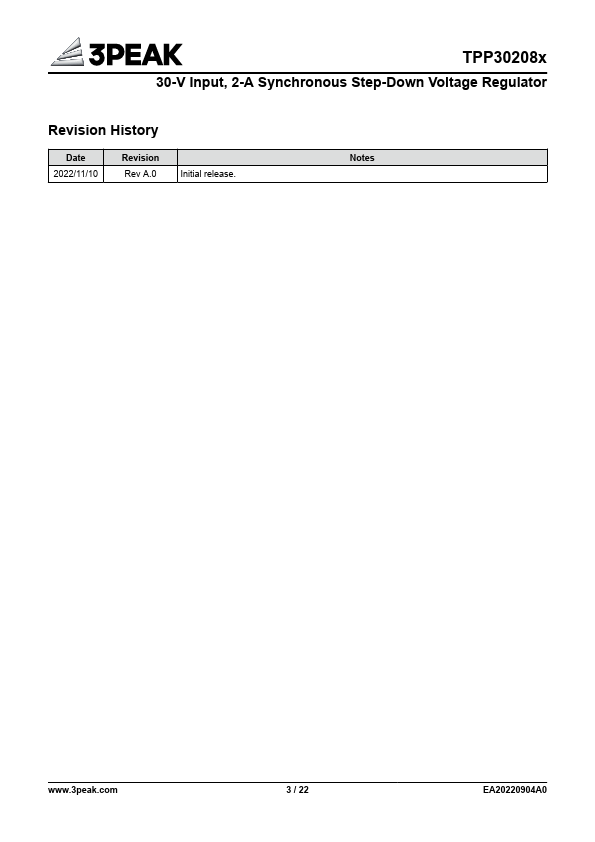

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TPP302080
Manufacturer 3PEAK
File Size 1.68 MB
Description 2-A Synchronous Step-Down Voltage Regulator
Datasheet download datasheet TPP302080-3PEAK.pdf

TPP302080 Product details

Description

Wide Supply Voltage: 4.5 V to 30 V Internal Power FET：180 mΩ and 90 mΩ High-Efficiency Synchronous-Mode Operation Fixed Switching Frequency 500 kHz (TPP302080/2) 2.2 MHz (TPP302081/3) Low 2-μA Shutdown, 70-μA Quiescent Current Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP302080/1) Forced-PWM Mode for Low-Output Ripple (TPP302082/3) Internal 2-ms Soft-Start Timer
