TPP361062, TPP361060 - 1-A Synchronous Step-Down Voltage Regulator

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: TPP361062, TPP361060. Please refer to the document for exact specifications by model.

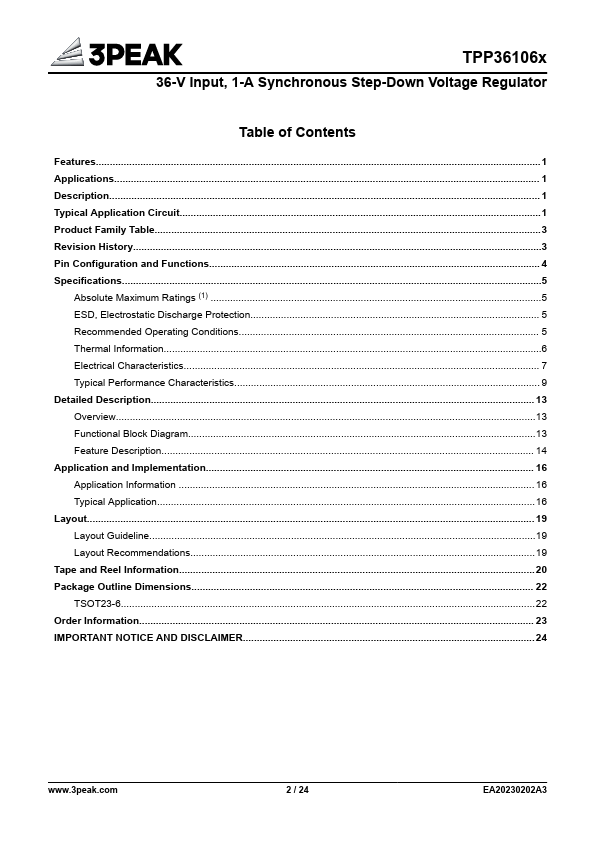

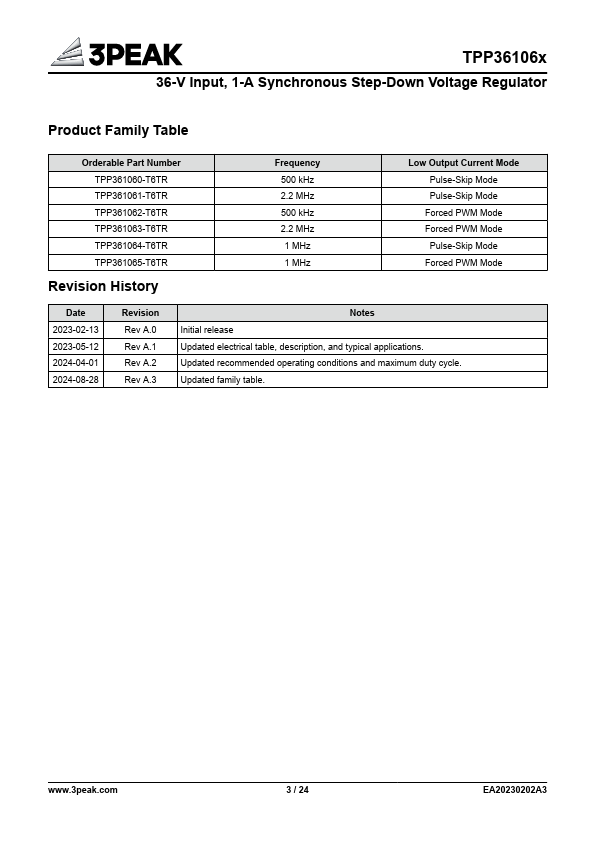

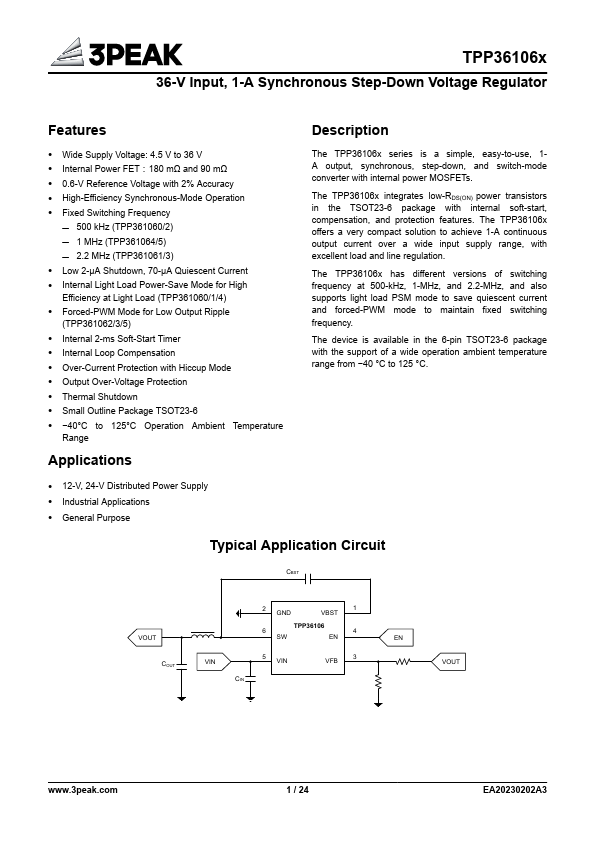

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number TPP361062, TPP361060
Manufacturer 3PEAK
File Size 2.26 MB
Description 1-A Synchronous Step-Down Voltage Regulator
Datasheet download datasheet TPP361060-3PEAK.pdf
Note This datasheet PDF includes multiple part numbers: TPP361062, TPP361060.
Please refer to the document for exact specifications by model.

TPP361062 Product details

Description

Wide Supply Voltage: 4.5 V to 36 V Internal Power FET：180 mΩ and 90 mΩ 0.6-V Reference Voltage with 2% Accuracy High-Efficiency Synchronous-Mode Operation Fixed Switching Frequency 500 kHz (TPP361060/2) 1 MHz (TPP361064/5) 2.2 MHz (TPP361061/3) Low 2-μA Shutdown, 70-μA Quiescent Current Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP361060/1/4) Forced-PWM Mode
