The TPP361082 by 3PEAK is a 1-A Synchronous Step-Down Voltage Regulator. Below is the official datasheet preview.
| Part number | TPP361082, TPP361080 |
|---|---|
| Manufacturer | 3PEAK |
| File Size | 1.70 MB |
| Description | 1-A Synchronous Step-Down Voltage Regulator |
| Datasheet |
 TPP361080-3PEAK.pdf
|
| Note |
This datasheet PDF includes multiple part numbers: TPP361082, TPP361080. Please refer to the document for exact specifications by model. |
|
|

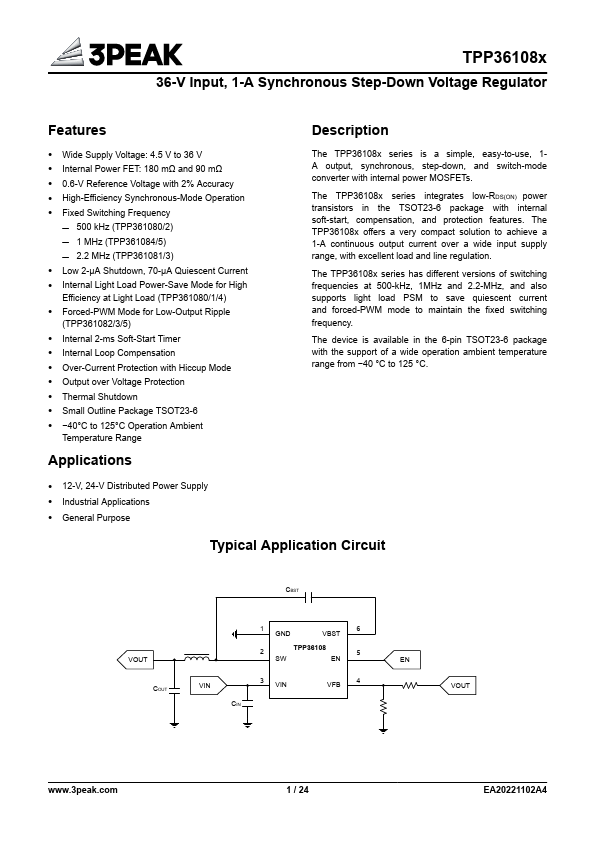

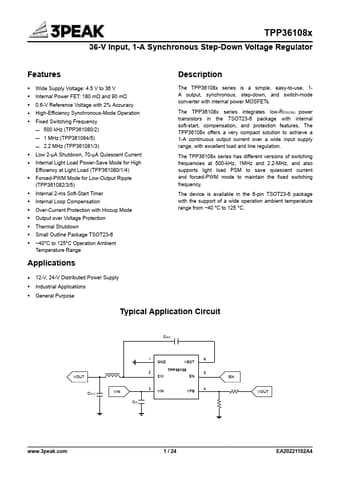

Wide Supply Voltage: 4.5 V to 36 V Internal Power FET: 180 mΩ and 90 mΩ 0.6-V Reference Voltage with 2% Accuracy High-Efficiency Synchronous-Mode Operation Fixed Switching Frequency 500 kHz (TPP361080/2) 1 MHz (TPP361084/5) 2.2 MHz (TPP361081/3) Low 2-μA Shutdown, 70-μA Quiescent Current Internal Light Load Power-Save Mode for High Efficiency at Light Load (TPP361080/1/4) Forced-PWM Mod
