TPP362080 - 2-A Synchronous Step-Down Voltage Regulator

The TPP362080 by 3PEAK is a 2-A Synchronous Step-Down Voltage Regulator. Below is the official datasheet preview.

📥 Download Datasheet

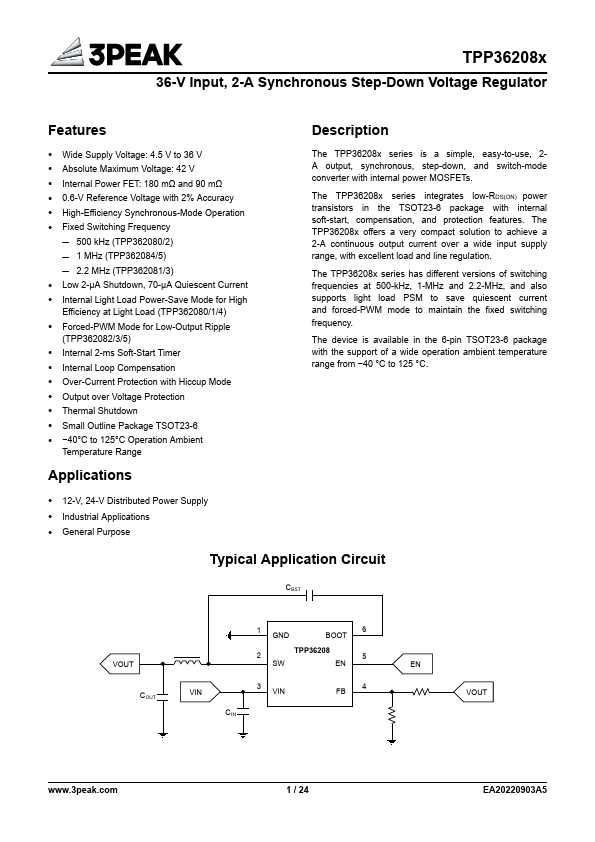

Official preview page of the TPP362080 2-A Synchronous Step-Down Voltage Regulator datasheet (3PEAK).

Datasheet Details

Part number TPP362080
Manufacturer 3PEAK
File Size 1.66 MB
Description 2-A Synchronous Step-Down Voltage Regulator
Datasheet download datasheet TPP362080-3PEAK.pdf

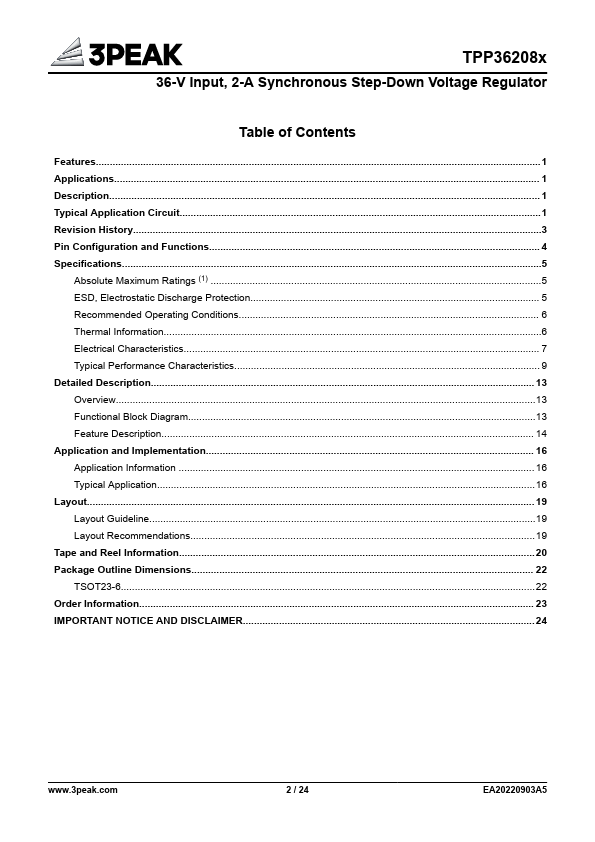

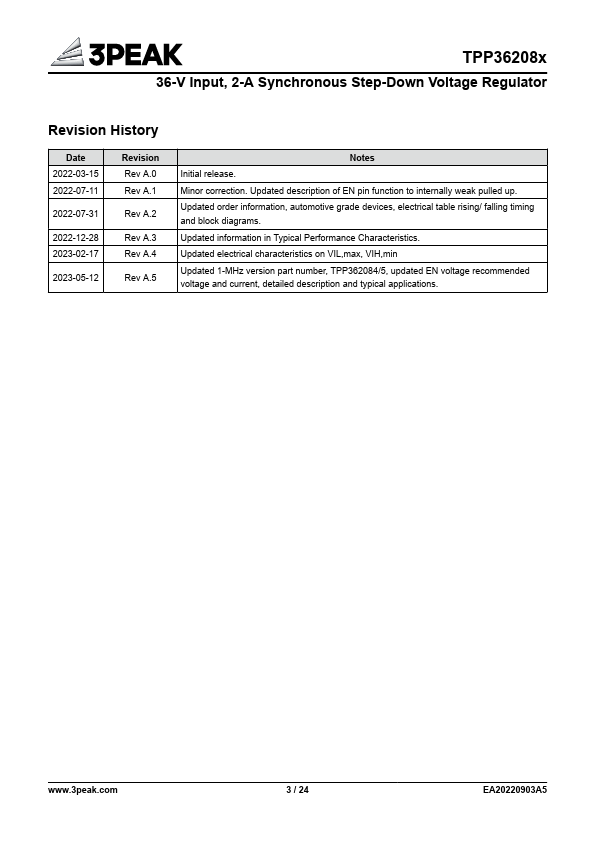

Additional preview pages of the TPP362080 datasheet.

TPP362080 Product details

Description

Wide Supply Voltage: 4.5 V to 36 V Absolute Maximum Voltage: 42 V Internal Power FET: 180 mΩ and 90 mΩ 0.6-V Reference Voltage with 2% Accuracy High-Efficiency Synchronous-Mode Operation Fixed Switching Frequency 500 kHz (TPP362080/2) 1 MHz (TPP362084/5) 2.2 MHz (TPP362081/3) Low 2-μA Shutdown, 70-μA Quiescent Current Internal Light Load Power-Save Mode for High Efficiency at Light Load
