TPQ051002 - 600-mA Synchronous Step-up Regulator

This page provides the datasheet information for the TPQ051002, a member of the TPQ05100 600-mA Synchronous Step-up Regulator family.

Datasheet Summary

Description

The TPQ05100x series of products are synchronous boost converters with less than 260-nA ultra-low quiescent current.

The device has an ultra-low under-voltage lockout threshold to support different kinds of battery voltages as low as 0.9 V.

Features

  • 260-nA Ultra-Low IQ into the VOUT Pin.
  • 40-nA Ultra-Low IQ into the VIN Pin.
  • Operating Input Voltage from 0.9 V to 5.5 V.
  • Adjustable Output Voltage from 2.5 V to 5.5 V.
  • Fixed Output Voltage Versions Available.
  • Typical 0.8-A Switch Peak Current Limit.
  • Regulated Output Voltage in the Down Mode.
  • True Disconnection During Shutdown.
  • Up to 80% Efficiency at 10-μA Load with Fixed Output Voltage Versions.
  • Up to 96%.

📥 Download Datasheet

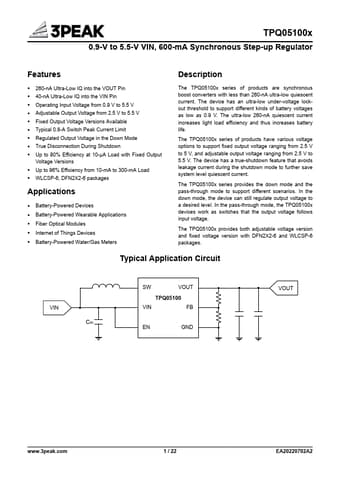

Datasheet preview – TPQ051002

Datasheet Details

Part number TPQ051002
Manufacturer 3PEAK
File Size 1.16 MB
Description 600-mA Synchronous Step-up Regulator
Datasheet download datasheet TPQ051002 Datasheet
