LM2902A, LM2904A - 36V General Purpose Op Amps

3Peak

The LM2902A by 3Peak is a 36V General Purpose Op Amps. Below is the official datasheet preview.

📥 Download Datasheet

LM2902A 36V General Purpose Op Amps by 3Peak - Datasheet Preview — Official preview page of the **LM2902A** 36V General Purpose Op Amps datasheet (3Peak).

Datasheet Details

Part number	LM2902A, LM2904A
Manufacturer	3Peak
File Size	795.10 KB
Description	36V General Purpose Op Amps
Datasheet	LM2904A-3Peak.pdf
Note	This datasheet PDF includes multiple part numbers: LM2902A, LM2904A. Please refer to the document for exact specifications by model.

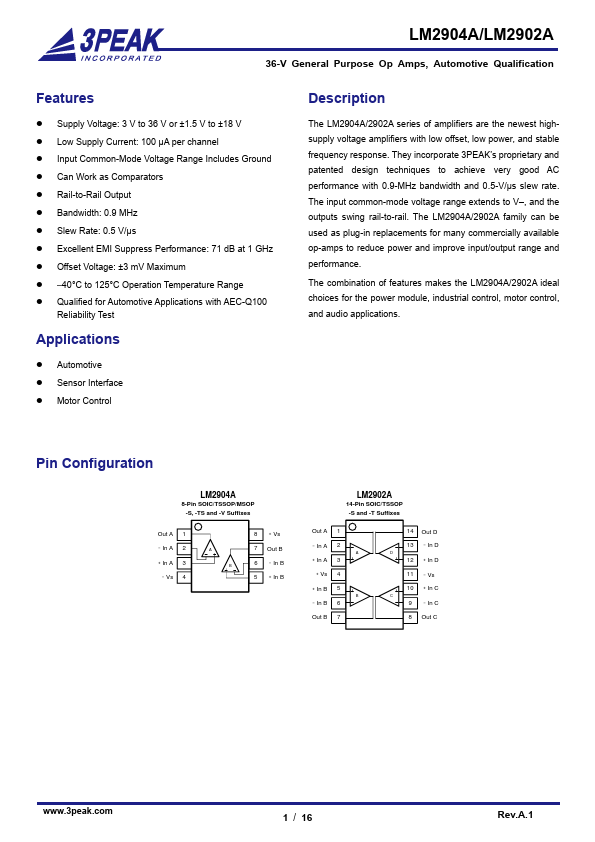

Additional preview pages of the LM2902A datasheet.

LM2902A Product details

Description

The LM2904A/2902A series of amplifiers are the newest highsupply voltage amplifiers with low offset, low power, and stable frequency response. , and the outputs swing rail-to-rail.

Features

Supply Voltage: 3 V to 36 V or ±1.5 V to ±18 V.
Low Supply Current: 100 μA per channel.
Input Common-Mode Voltage Range Includes Ground.
Can Work as Comparators.
Rail-to-Rail Output.
Bandwidth: 0.9 MHz.
Slew Rate: 0.5 V/μs.
Excellent EMI Suppress Performance: 71 dB at 1 GHz.
Offset Voltage: ±3 mV Maximum.
40°C to 125°C Operation Temperature Range.
Qualified for Automotive.
