TP1511 - Op Amps

TP1511 Description

TP1511/TP1512/TP1514 Stable 150-kHz, 4-μA, Rail-to-Rail, Op Amps .
The TP151x family includes CMOS single/dual/quad op-amps with low offset, stable high-frequency response, low power, low supply voltage, and rail-tora.

TP1511 Features

* Stable 150 kHz GBWP
* 0.09 V/μs Slew Rate
* Only 4 μA of Supply Current per Amplifier
* Unity Gain Stable
* Offset Voltage: 3.0 mV Maximum
* Offset Voltage Temperature Drift: 0.6 μV/°C
* Input Bias Current: 1 pA Typical
* High CMRR/PSRR: 110 dB
* No Phase Revers

TP1511 Applications

* Sensor Conditioning
* Battery Current Sensing
* IR thermometers
* Digital Scales
* Automotive Keyless Entry
* Toll Booth Tags
* Data Acquisition Equipment
* Battery or Solar Powered Systems
* Active Filters, ASIC Input or Output Amplifier
* Portable Instrume

📥 Download Datasheet

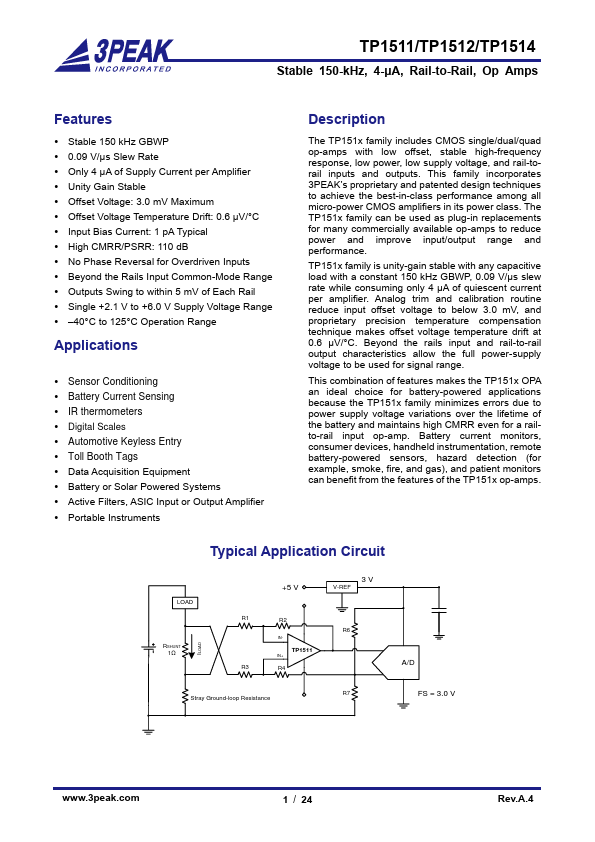

Preview of TP1511 PDF

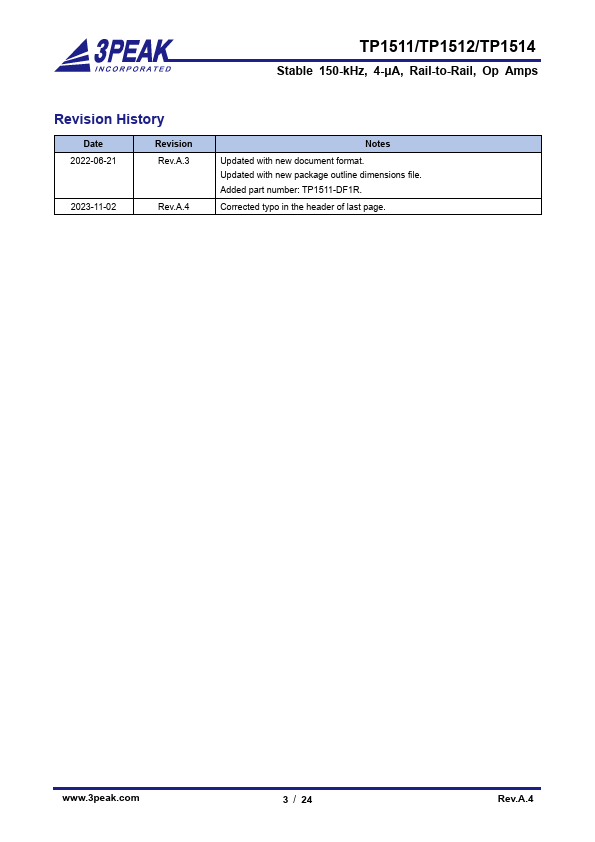

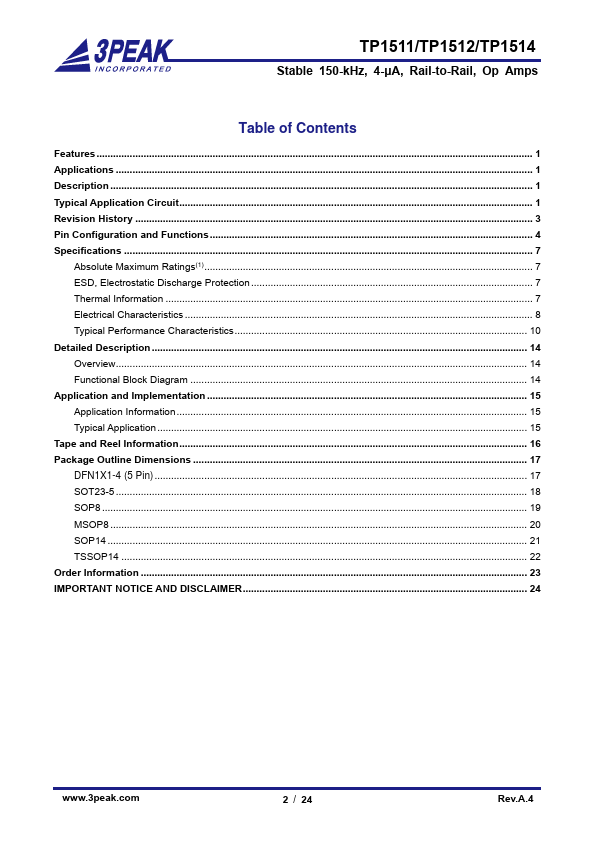

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TP1511
Manufacturer
3Peak
File Size
1.18 MB
Datasheet
TP1511-3Peak.pdf
Description
Op Amps
