AAT1157 DC/DC Converter

AAT1157 Description

AAT1157 1MHz 1.2A Buck DC/DC Converter General .
The AAT1157 SwitchReg™ is a member of AnalogicTech's Total Power Management IC™ (TPMIC™) product family.

AAT1157 Features

* SwitchReg™ VIN Range: 2.7V to 5.5V Up to 95% Efficiency 110 mΩ RDS(ON) Internal Switches

AAT1157 Applications

* where fixed frequency and low ripple are required over the full range of load conditions. The 2.7V to 5.5V input voltage range makes the AAT1157 ideal for singlecell lithium-ion/polymer battery applications. Capable of up to 1.2A with internal MOSFETs, the current-mode controlled IC provides high ef

📥 Download Datasheet

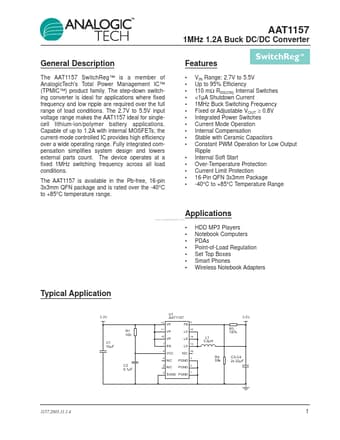

Preview of AAT1157 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AAT1157
Manufacturer
AAT
File Size
420.76 KB
Datasheet
AAT1157_AAT.pdf
Description
DC/DC Converter
