AAT4295

(AAT4295 / AAT4297) Single/Dual RGB Controller

AAT4295 Features

* Features

* SmartSwitch™

* Input Voltage Range: 1.8V to 5.5V Independent Low-Side N-Channel MOSFET Switches:

* AAT4295: Three Channels

* AAT4297: Six Channels User-Programmable S2Cwire Interface Single GP

AAT4295 General Description

The AAT4295/97 SmartSwitch is a member of AnalogicTech's Application Specific Power MOSFET™ (ASPM™) product family. The AAT4295/97 is comprised of three/six low-side N-channel MOSFET switches that gate an applied load to ground. This device is intended for controlling RGB fashion lighting in portabl.

AAT4295 Datasheet (258.08 KB)

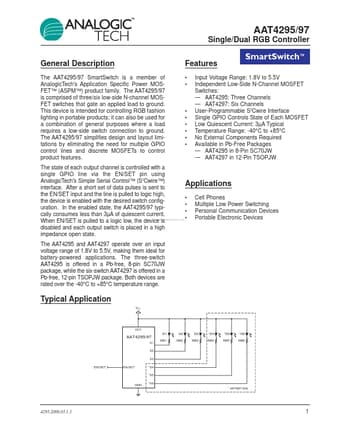

Preview of AAT4295 PDF

Datasheet Details

Part number:

AAT4295

Manufacturer:

AAT

File Size:

258.08 KB

Description:

(aat4295 / aat4297) single/dual rgb controller.
