5STP04D3600, 5STP04D4200 Datasheet - ABB

5STP04D3600 Phase Control Thyristor

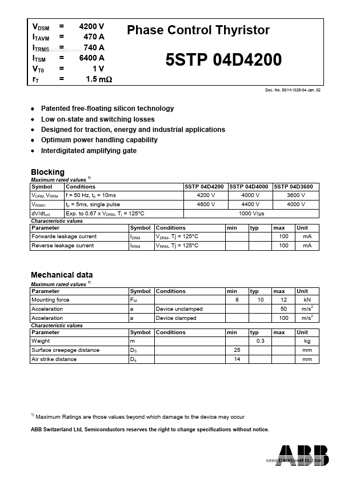

VDSM = 4200 V ITAVM = 470 A ITRMS = 740 A www.DataSheet4U.com ITSM = 6400 A VT0 = 1V rT = 1.5 mΩ Phase Control Thyristor 5STP 04D4200 Doc. No. 5SYA1025-04 Jan. 02 Patented free-floating silicon technology Low on-state and switching losses Designed for traction, energy and industrial applications Optimum power handling capability Interdigitated amplifying gate Blocking Maximum rated values 1) Symbol VDRM, VRRM VRSM1 dV/dtcrit Parameter Cond.

5STP04D4200_ABB.pdf

This datasheet PDF includes multiple part numbers: 5STP04D3600, 5STP04D4200. Please refer to the document for exact specifications by model.
