S-1004 - VOLTAGE DETECTOR

S-1004 Series www.ablicinc.com © ABLIC Inc., 2014 BUILT-IN DELAY CIRCUIT (EXTERNAL DELAY TIME SETTING) VOLTAGE DETECTOR WITH SENSE PIN Rev.2.1_02 The S-1004 Series is a high-accuracy voltage detector developed using CMOS technology.

The detection voltage is fixed internally with an accuracy of 1.0% (VDET(S)  2.2 V).

It operates with current consumption of 500 nA typ.

Apart from the power supply pin, the detection voltage input pin (SENSE pin) is also prepared, so the output is stable even

S-1004 Features

* Detection voltage: 1.0 V to 5.0 V (0.1 V step)

* Detection voltage accuracy: 1.0% (2.2 V  VDET(S)  5.0 V) 22 mV (1.0 V  VDET(S)  2.2 V)

* Current consumption: 500 nA typ.

* Operation voltage range: 0.9

S-1004-ABLIC.pdf

Preview of S-1004 PDF

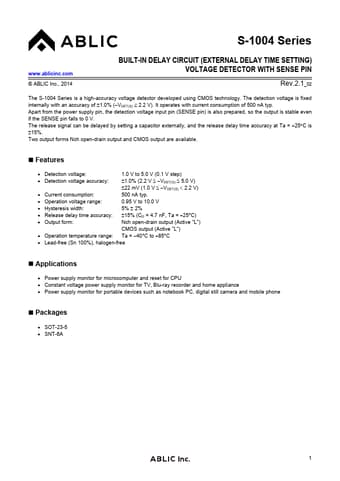

S-1004 Datasheet Preview Page 2 S-1004 Datasheet Preview Page 3

Datasheet Details

Part number:

S-1004

Manufacturer:

ABLIC

File Size:

1.23 MB

Description:

Voltage detector.
