S-1312C33H Datasheet CMOS VOLTAGE REGULATOR

Manufacturer: ABLIC

Download the S-1312C33H datasheet PDF. This datasheet also includes the S-1312xxxH variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (S-1312xxxH-ABLIC.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number S-1312C33H
Manufacturer ABLIC
File Size 735.05 KB
Description CMOS VOLTAGE REGULATOR
Datasheet download datasheet S-1312C33H Datasheet

Overview

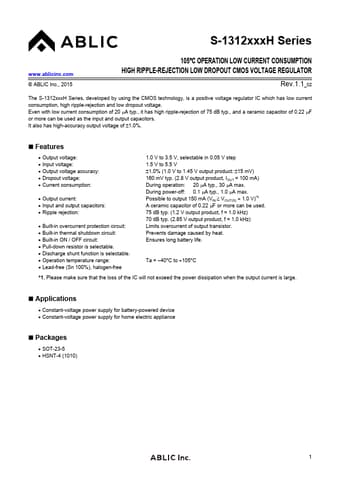

S-1312xxxH Series www.ablicinc.com © ABLIC Inc., 2015 105C OPERATION LOW CURRENT CONSUMPTION HIGH RIPPLE-REJECTION LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.1.1_02 The S-1312xxxH Series, developed by using the CMOS technology, is a positive voltage regulator IC which has low current consumption, high ripple-rejection and low dropout voltage.

Even with low current consumption of 20 A typ., it has high ripple-rejection of 75 dB typ., and a ceramic capacitor of 0.22 F or more can be used as the input and output capacitors.

It also has high-accuracy output voltage of 1.0%.

Key Features

  • Output voltage:.
  • Input voltage:.
  • Output voltage accuracy:.
  • Dropout voltage:.
  • Current consumption:.
  • Output current:.
  • Input and output capacitors:.
  • Ripple rejection:.
  • Built-in overcurrent protection circuit:.
  • Built-in thermal shutdown circuit:.
  • Built-in ON / OFF circuit:.
  • Pull-down resistor is selectable.
  • Discharge shunt function is selectable.
  • Operat.
