S-1721 CMOS VOLTAGE REGULATOR

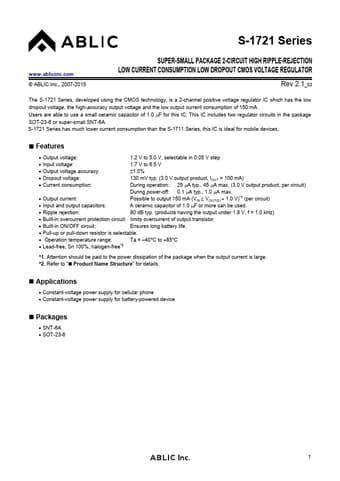

S-1721 Series www.ablicinc.com © ABLIC Inc., 2007-2015 SUPER-SMALL PACKAGE 2-CIRCUIT HIGH RIPPLE-REJECTION LOW CURRENT CONSUMPTION LOW DROPOUT CMOS VOLTAGE REGULATOR Rev.2.1_02 The S-1721 Series, developed using the CMOS technology, is a 2-channel positive voltage regulator IC which has the low dropout voltage, the high-accuracy output voltage and the low output current consumption of 150 mA. Users are able to use a small ceramic capacitor of 1.0 F for this IC. This IC includes two regulator.

S-1721 Features

* Output voltage: 1.2 V to 5.0 V, selectable in 0.05 V step

* Input voltage: 1.7 V to 6.5 V

* Output voltage accuracy: 1.0%

* Dropout voltage: 130 mV typ. (3.0 V output product, IOUT = 100 mA)

* Current consumption: During operation: 25 A typ., 45 A max. (3.0 V outpu
