S-19103

VOLTAGE DETECTOR

ABLIC

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	ABLIC Inc.	S-19103N21H-M5T1U	LINEAR IC	DigiKey	0	6000 units	$0.55	🛒 Buy Now

S-19103 Datasheet (587.98 KB)

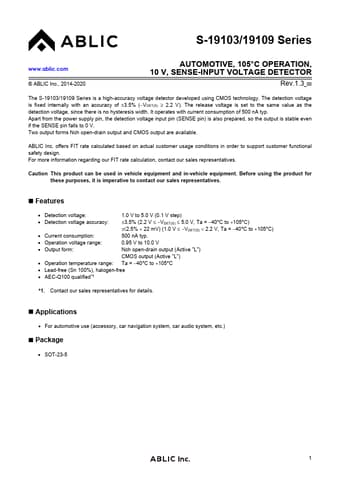

S-19103 Datasheet Preview — Preview of S-19103 PDF

Datasheet Details

Part number:

S-19103

Manufacturer:

ABLIC

File Size:

587.98 KB

Description:

Voltage detector.
S-19103/19109 Series www.ablic.com © ABLIC Inc., 2014-2020 AUTOMOTIVE, 105°C OPERATION, 10 V, SENSE-INPUT VOLTAGE DETECTOR Rev.1.3_00 The S-19103/1.

S-19103 Features

* Detection voltage: 1.0 V to 5.0 V (0.1 V step)

* Detection voltage accuracy: ±3.5% (2.2 V ≤

* VDET(S) ≤ 5.0 V, Ta =

* 40°C to +105°C) ±(2.5% + 22 mV) (1.0 V ≤

* VDET(S) < 2.2 V, Ta =

* 40°C to +105°C)

* Current consumption: 500 nA typ.
