S-19104 - VOLTAGE DETECTOR

ABLIC

The S-19104 by ABLIC is a VOLTAGE DETECTOR. Below is the official datasheet preview.

📥 Download Datasheet

S-19104 VOLTAGE DETECTOR by ABLIC - Datasheet Preview — Official preview page of the S-19104 VOLTAGE DETECTOR datasheet (ABLIC).

Datasheet Details

Part number	S-19104
Manufacturer	ABLIC
File Size	874.66 KB
Description	VOLTAGE DETECTOR
Datasheet	S-19104-ABLIC.pdf

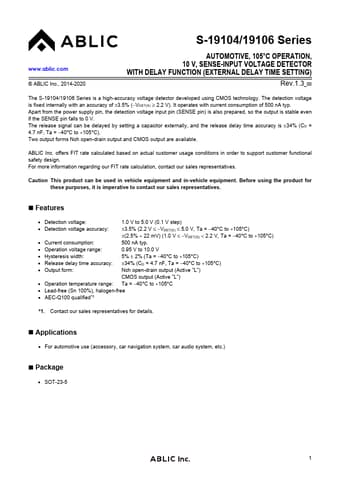

Additional preview pages of the S-19104 datasheet.

S-19104 Product details

Features

br>.
Detection voltage: 1.0 V to 5.0 V (0.1 V step).
Detection voltage accuracy: ±3.5% (2.2 V ≤.
VDET(S) ≤ 5.0 V, Ta =.
40°C to +105°C) ±(2.5% + 22 mV) (1.0 V ≤.
VDET(S) < 2.2 V, Ta =.
40°C to +105°C).
Current consumption: 500 nA typ.
Operation voltage range: 0.95 V to 10.0 V.
Hysteresis width: 5% ± 2% (Ta =.
40°C to +105°C).
Release delay time accuracy: ±34% (CD = 4.7 nF, Ta =.
40°C to +105°.
