S-19108, S-19102 - VOLTAGE DETECTOR

ABLIC

The S-19108 by ABLIC is a VOLTAGE DETECTOR. Below is the official datasheet preview.

📥 Download Datasheet

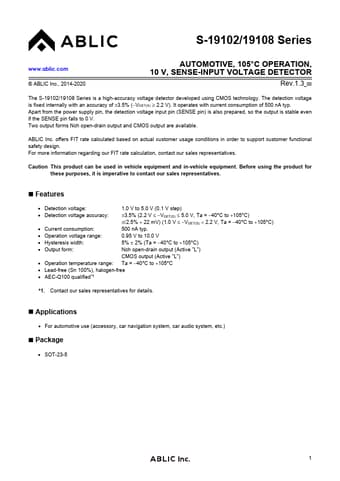

S-19108 VOLTAGE DETECTOR by ABLIC - Datasheet Preview — Official preview page of the S-19108 VOLTAGE DETECTOR datasheet (ABLIC).

Datasheet Details

Part number	S-19108, S-19102
Manufacturer	ABLIC
File Size	649.80 KB
Description	VOLTAGE DETECTOR
Datasheet	S-19102-ABLIC.pdf
Note	This datasheet PDF includes multiple part numbers: S-19108, S-19102. Please refer to the document for exact specifications by model.
Additional preview pages of the S-19108 datasheet.

S-19108 Product details

Features

r>.
Detection voltage: 1.0 V to 5.0 V (0.1 V step).
Detection voltage accuracy: ±3.5% (2.2 V ≤.
VDET(S) ≤ 5.0 V, Ta =.
40°C to +105°C) ±(2.5% + 22 mV) (1.0 V ≤.
VDET(S) < 2.2 V, Ta =.
40°C to +105°C).
Current consumption: 500 nA typ.
Operation voltage range: 0.95 V to 10.0 V.
Hysteresis width: 5% ± 2% (Ta =.
40°C to +105°C).
Output form: Nch open-drain output (Active "L") CMOS output (Active "L.
