S-19109, S-19103 VOLTAGE DETECTOR

S-19109 Description

S-19103/19109 Series www.ablic.com © ABLIC Inc., 2014-2020 AUTOMOTIVE, 105°C OPERATION, 10 V, SENSE-INPUT VOLTAGE DETECTOR Rev.1.3_00 The S-19103/1.

S-19109 Features

* Detection voltage: 1.0 V to 5.0 V (0.1 V step)
* Detection voltage accuracy: ±3.5% (2.2 V ≤
* VDET(S) ≤ 5.0 V, Ta =
* 40°C to +105°C) ±(2.5% + 22 mV) (1.0 V ≤
* VDET(S) < 2.2 V, Ta =
* 40°C to +105°C)
* Current consumption: 500 nA typ.

S-19109 Applications

* For automotive use (accessory, car navigation system, car audio system, etc. )
* Package
* SOT-23-5 1 AUTOMOTIVE, 105°C OPERATION, 10 V, SENSE-INPUT VOLTAGE DETECTOR S-19103/19109 Series Rev.1.3_00
* Block Diagrams 1. S-19103/19109 Series N type (Nch open-drain output)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S-19109, S-19103. Please refer to the document for exact specifications by model.

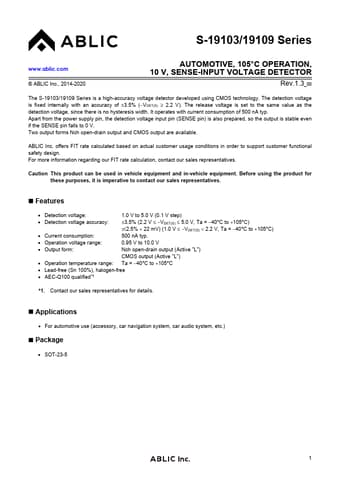

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-19109, S-19103
Manufacturer
ABLIC
File Size
587.98 KB
Datasheet
S-19103-ABLIC.pdf
Description
VOLTAGE DETECTOR
Note
This datasheet PDF includes multiple part numbers: S-19109, S-19103.
Please refer to the document for exact specifications by model.
