S-19110JxxA Datasheet - ABLIC

S-19110JxxA VOLTAGE DETECTOR

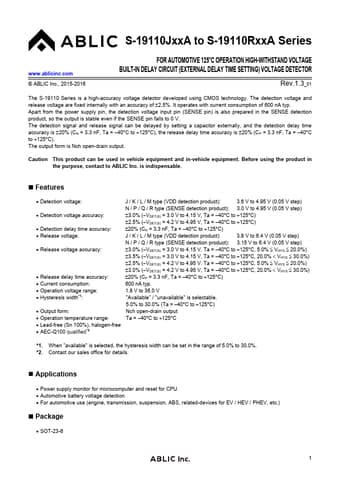

S-19110JxxA to S-19110RxxA Series www.ablicinc.com © ABLIC Inc., 2015-2016 FOR AUTOMOTIVE 125°C OPERATION HIGH-WITHSTAND VOLTAGE BUILT-IN DELAY CIRCUIT (EXTERNAL DELAY TIME SETTING) VOLTAGE DETECTOR Rev.1.3_01 The S-19110 Series is a high-accuracy voltage detector developed using CMOS technology. The detection voltage and release voltage are fixed internally with an accuracy of 2.5%. It operates with current consumption of 600 nA typ. Apart from the power supply pin, the detection voltage in.

S-19110JxxA Datasheet (1.42 MB)
