S-19161B - BATTERY PROTECTION IC

ABLIC

📥 Download Datasheet

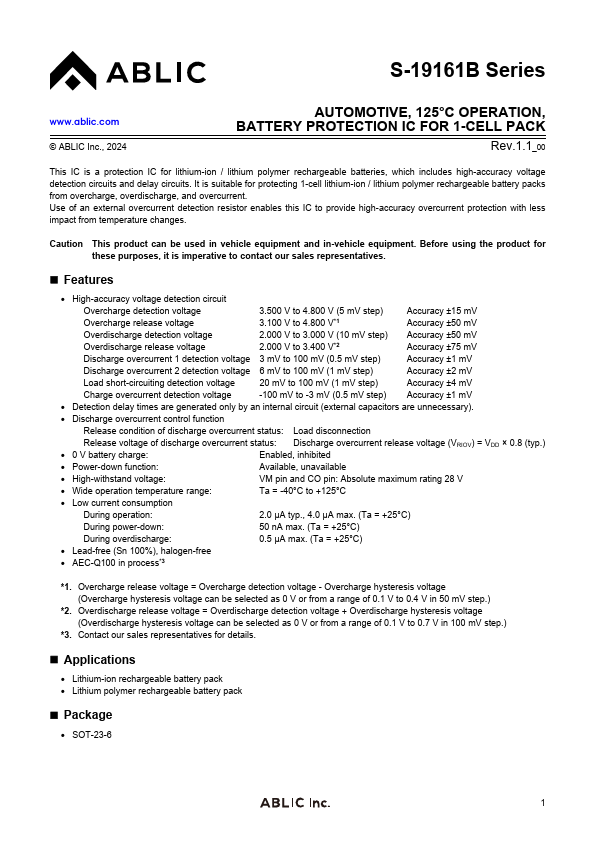

S-19161B Datasheet Preview — Preview of S-19161B PDF

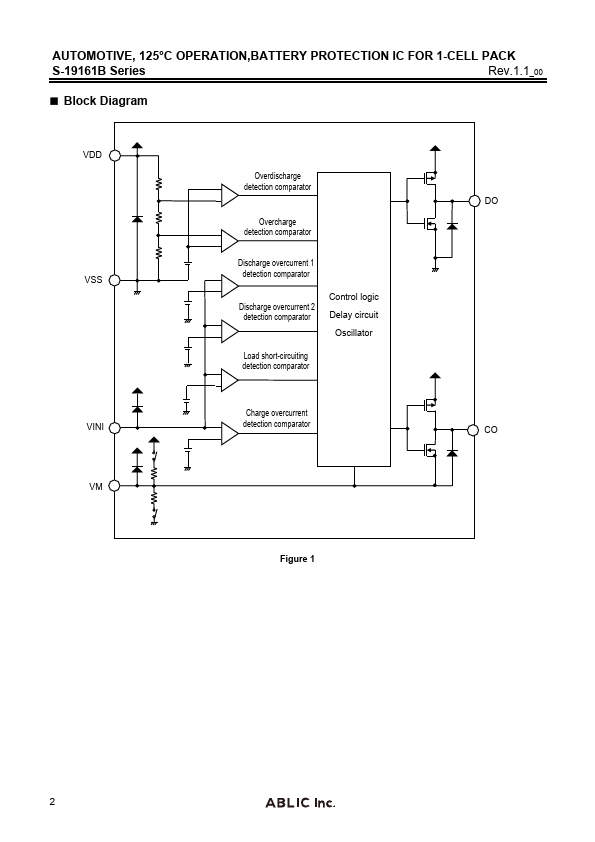

datasheet Preview Page 2

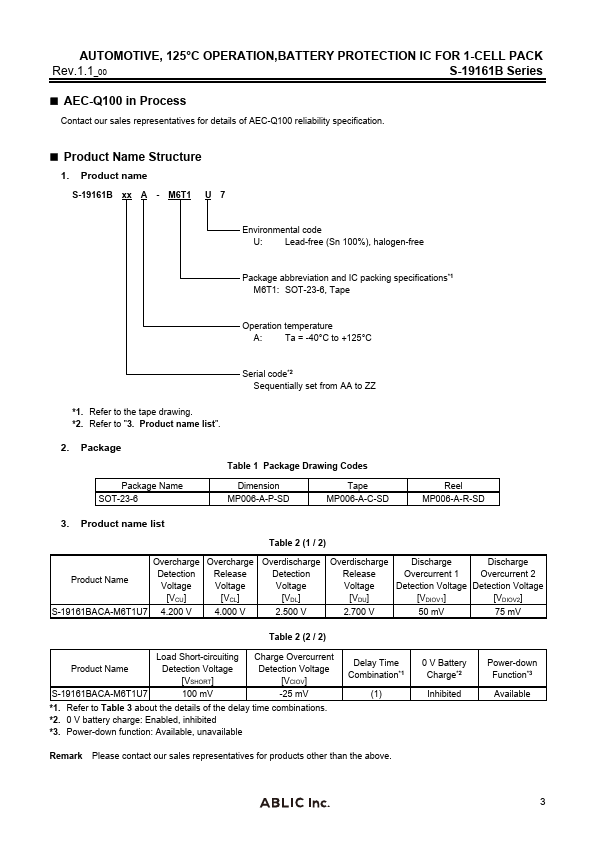

datasheet Preview Page 3

Datasheet Details

Part number	S-19161B
Manufacturer	ABLIC ↗
File Size	633.70 KB
Description	BATTERY PROTECTION IC
Datasheet	S-19161B-ABLIC.pdf

S-19161B Product details

Features

High-accuracy voltage detection circuit Overcharge detection voltage 3.500 V to 4.800 V (5 mV step) Accuracy ±15 mV Overcharge release voltage 3.100 V to 4.800 V.
1 Accuracy ±50 mV Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV Overdischarge release voltage 2.000 V to 3.400 V.
2 Accuracy ±75 mV Discharge overcurrent 1 detection voltage 3 mV to 100 mV (0.5 mV step) Accuracy ±1 mV Discharge overcurrent 2 detection voltage 6 mV to 100.
