S-19193 - BATTERY MONITORING IC

ABLIC

📥 Download Datasheet

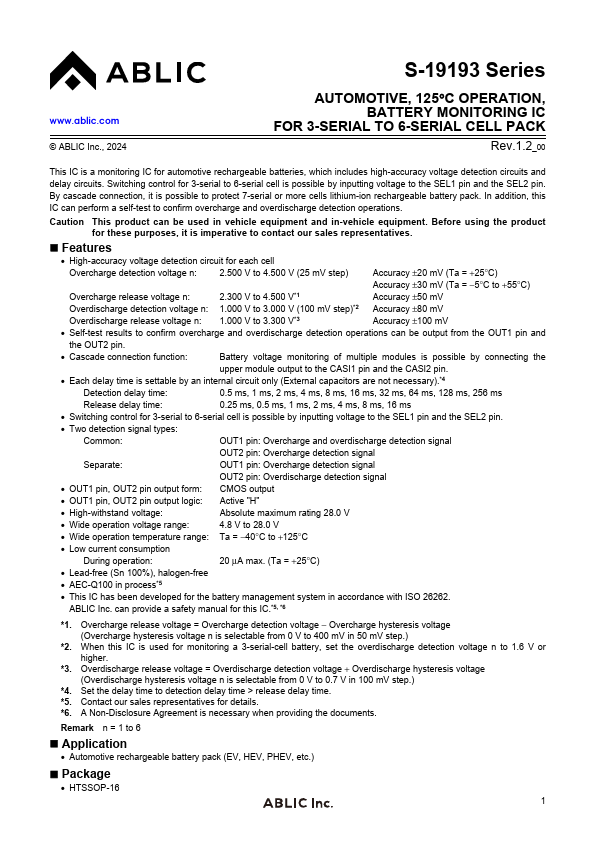

S-19193 Datasheet Preview — Preview of S-19193 PDF

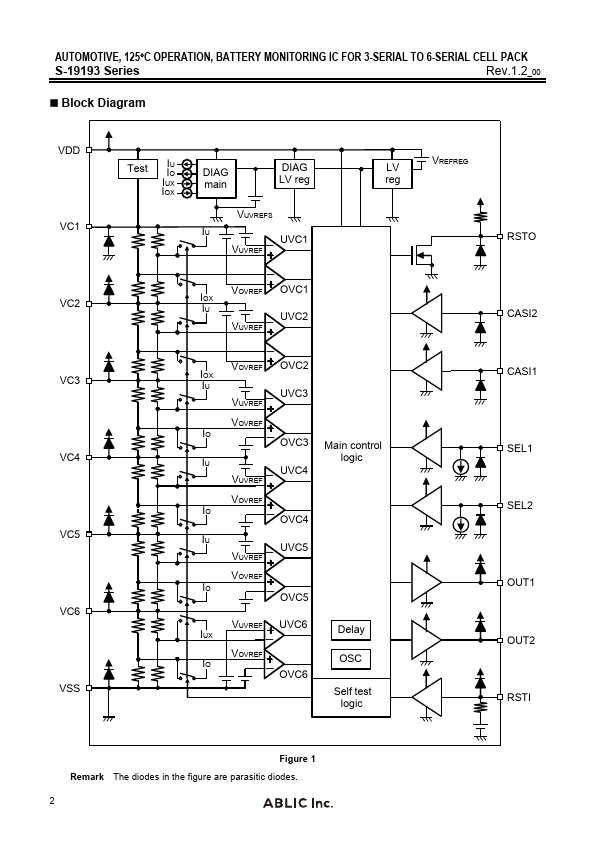

datasheet Preview Page 2

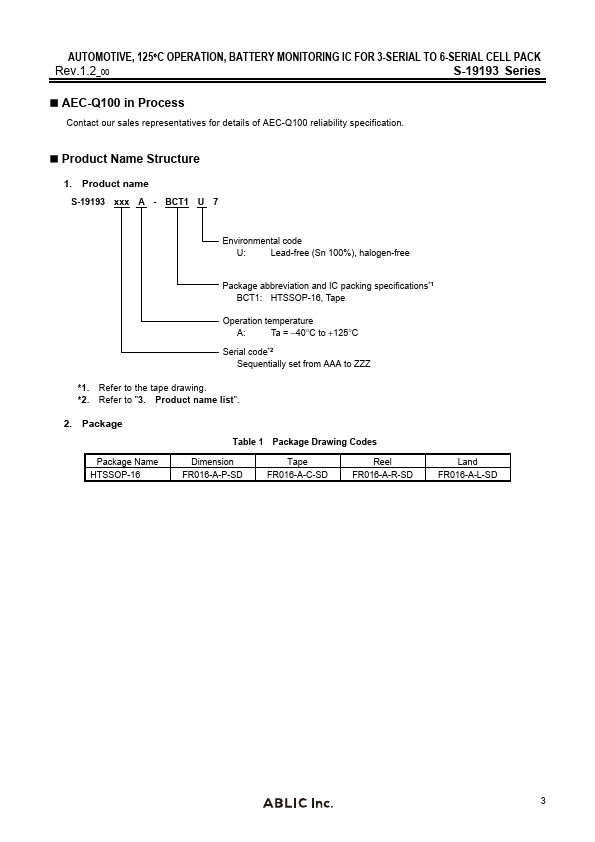

datasheet Preview Page 3

Datasheet Details

Part number	S-19193
Manufacturer	ABLIC ↗
File Size	787.30 KB
Description	BATTERY MONITORING IC
Datasheet	S-19193-ABLIC.pdf

S-19193 Product details

Features

High-accuracy voltage detection circuit for each cell Overcharge detection voltage n: 2.500 V to 4.500 V (25 mV step) Accuracy ±20 mV (Ta = +25°C) Accuracy ±30 mV (Ta =.
5°C to +55°C) Overcharge release voltage n: 2.300 V to 4.500 V.
1 Accuracy ±50 mV Overdischarge detection voltage n: 1.000 V to 3.000 V (100 mV step).
2 Accuracy ±80 mV Overdischarge release voltage n: 1.000 V to 3.300 V.
3 Accuracy ±100 mV.
Self-test results to confirm overcharge.
