S-19680 HIGH-SIDE SWITCH

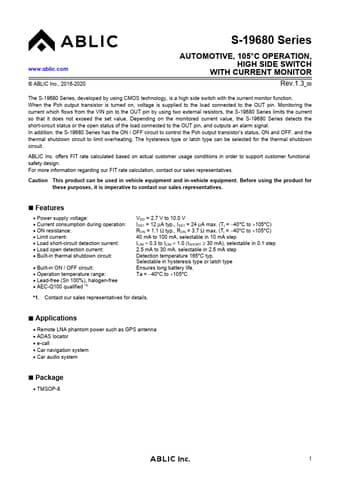

S-19680 Series www.ablic.com © ABLIC Inc., 2016-2020 AUTOMOTIVE, 105°C OPERATION, HIGH SIDE SWITCH WITH CURRENT MONITOR Rev.1.3_00 The S-19680 Series, developed by using CMOS technology, is a high side switch with the current monitor function. When the Pch output transistor is turned on, voltage is supplied to the load connected to the OUT pin. Monitoring the current which flows from the VIN pin to the OUT pin by using two external resistors, the S-19680 Series limits the current so that it d.

S-19680 Features

* Power supply voltage:

* Current consumption during operation:

* ON resistance:

* Limit current:

* Load short-circuit detection current:

* Load open detection current:

* Built-in thermal shutdown circuit:

* Built-in ON / OFF circuit:

S-19680 Datasheet (0.96 MB)

S-19680 Datasheet Preview — Preview of S-19680 PDF

Datasheet Details

Part number:

S-19680

Manufacturer:

ABLIC

File Size:

0.96 MB

Description:

High-side switch.
