S-19932C, STEP-DOWN SWITCHING REGULATOR

S-19932C/19932D/19933C/19933D Series www.ablic.com © ABLIC Inc., 2019-2021 AUTOMOTIVE, 125°C OPERATION, 18 V INPUT, 600 mA SYNCHRONOUS STEP-DOWN SWI.

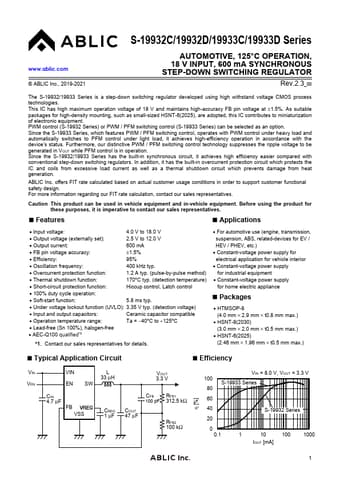

datasheet Preview Page 1 from Datasheet4u.com

S-19932C-ABLIC.pdf

S-19932C Datasheet Preview — Preview of S-19932C PDF

Datasheet Details

Part number:

S-19932C

Manufacturer:

ABLIC

File Size:

0.96 MB

Description:

STEP-DOWN SWITCHING REGULATOR

Features

* PWM / PFM switching control, operates with PWM control under heavy load and automatically switches to PFM control under light load, it achieves high-efficiency operation in accordance with the device's status. Furthermore, our distinctive PWM / PFM switching control technology suppresses the ripple

Applications

* Input voltage: 4.0 V to 18.0 V
* Output voltage (externally set): 2.5 V to 12.0 V
* Output current: 600 mA
* FB pin voltage accuracy: ±1.5%
* Efficiency: 95%
* Oscillation frequency: 400 kHz typ.
* Overcurrent protection function
