S-25C010A - SPI SERIAL E2PROM

ABLIC

📥 Download Datasheet

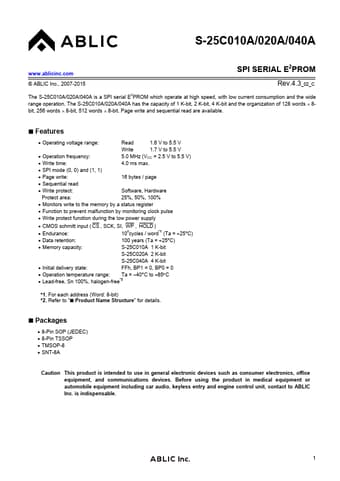

S-25C010A Datasheet Preview — Preview of S-25C010A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-25C010A
Manufacturer	ABLIC
File Size	686.40 KB
Description	SPI SERIAL E2PROM
Datasheet	S-25C010A-ABLIC.pdf

S-25C010A Product details

Features

Operating voltage range: Read Write 1.6 V to 5.5 V 1.7 V to 5.5 V.
Operation frequency:.
Write time:.
SPI mode (0, 0) and (1, 1).
Page write:.
Sequential read.
Write protect: Protect area: 5.0 MHz (VCC = 2.5 V to 5.5 V) 4.0 ms max. 16 bytes / page Software, Hardware 25%, 50%, 100%.
Monitors write to the memory by a status register.
Function to prevent malfunction by monitoring clock pulse.
Write protect function during the low power supply.
