S-575DNL3B-L3T2U, S-575DNL1B-L3T2U, HALL-EFFECT SWITCH-IC

S-575D B Series www.ablic.com © ABLIC Inc., 2019-2020 125°C OPERATION, HIGH-WITHSTAND VOLTAGE, HIGH-SPEED, OMNIPOLAR DETECTION TYPE HALL EFFECT SWIT.

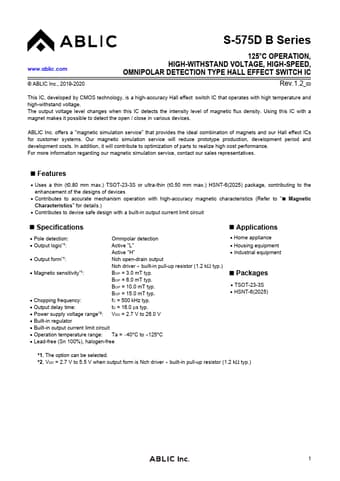

datasheet Preview Page 1 from Datasheet4u.com

S-575DNL1B-L3T2U-ABLIC.pdf

S-575DNL3B-L3T2U Datasheet Preview — This datasheet PDF includes multiple part numbers: S-575DNL3B-L3T2U, S-575DNL1B-L3T2U. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

S-575DNL3B-L3T2U, S-575DNL1B-L3T2U

Manufacturer:

ABLIC

File Size:

763.85 KB

Description:

HALL-EFFECT SWITCH-IC

Note:

This datasheet PDF includes multiple part numbers: S-575DNL3B-L3T2U, S-575DNL1B-L3T2U.
Please refer to the document for exact specifications by model.

Features

* Uses a thin (t0.80 mm max. ) TSOT-23-3S or ultra-thin (t0.50 mm max. ) HSNT-6(2025) package, contributing to the enhancement of the designs of devices
* Contributes to accurate mechanism operation with high-accuracy magnetic characteristics (Refer to "
* Magnetic Characteristics"

Applications

* Pole detection: Omnipolar detection
* Output logic
* 1: Active "L" Active "H"
* Output form
* 1: Nch open-drain output Nch driver + built-in pull-up resistor (1.2 kΩ typ. )
* Magnetic sensitivity
* 1: BOP = 3.0 mT typ. BOP = 6.0 mT typ. BOP = 10.0 m
