S-576B1L1B-A6T8U BIPOLAR HALL EFFECT LATCH

S-576B B Series www.ablic.com © ABLIC Inc., 2019-2023 125°C OPERATION, HIGH-WITHSTAND VOLTAGE, HIGH-SPEED, BIPOLAR HALL EFFECT LATCH IC Rev.1.5_00 This IC, developed by CMOS technology, is a high-accuracy Hall effect latch IC that operates with high temperature and high-withstand voltage. The output voltage level changes when this IC detects the intensity level of magnetic flux density and a polarity change. Using this IC with a magnet makes it possible to detect the rotation status in variou.

S-576B1L1B-A6T8U Features

* Uses a thin (t0.80 mm max.) TSOT-23-3S or ultra-thin (t0.50 mm max.) HSNT-6(2025) package, allowing for device miniaturization

* Contributes to reduction of mechanism operation dispersion with high-accuracy magnetic characteristics (Typ. value ± 1.0 mT) (Refer to "

* Magnetic Ch

S-576BNH9B-L3T2U-ABLIC.pdf

This datasheet PDF includes multiple part numbers: S-576B1L1B-A6T8U, S-576BNH9B-L3T2U. Please refer to the document for exact specifications by model.

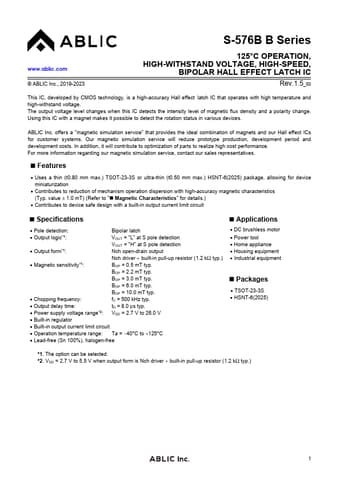

S-576B1L1B-A6T8U Datasheet Preview Page 2 S-576B1L1B-A6T8U Datasheet Preview Page 3
