S-80814C

VOLTAGE REGULATOR

S-80814C Features

* Super-low current consumption 1.3 A typ. (detection voltage1.4 V, at VDD  1.5 V) 0.8 A typ. (detection voltage1.5 V, at VDD  3.5 V)

* High-precision detection voltage 2.0%

* Operating voltage range 0.65 V to 5.0 V (detection voltage1.4 V) 0.95 V to 10.0 V (detection volta

S-80814C Datasheet (672.36 KB)

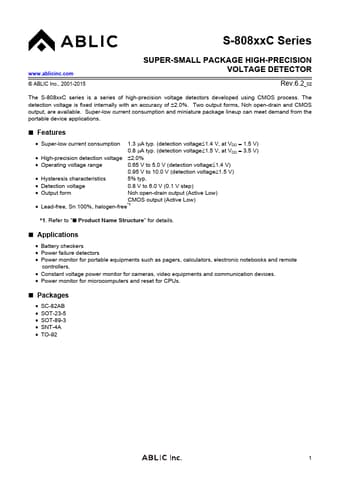

Preview of S-80814C PDF

Datasheet Details

Part number:

S-80814C

Manufacturer:

ABLIC

File Size:

672.36 KB

Description:

Voltage regulator.
S-808xxC Series www.ablicinc.com © ABLIC Inc., 2001-2015 SUPER-SMALL PACKAGE HIGH-PRECISION VOLTAGE DETECTOR Rev.6.2_02 The S-808xxC series is a se.
