S-8110C CMOS TEMPERATURE SENSOR

S-8110C Description

S-8110C/8120C Series www.ablicinc.com © ABLIC Inc., 2002-2015 CMOS TEMPERATURE SENSOR IC Rev.5.1_02 The S-8110C/8120C Series is a family of high-pr.

S-8110C Features

* Temperature accuracy S-8110C Series: 5.0C (
* 30C to 100C) S-8120C Series: 2.5C (
* 30C to 100C)
* Linear output voltage
* 8.20 mV/C typ. Ta  30C: 1.951 V typ. Ta  30C: 1.474 V typ. Ta  100C: 0.882 V typ.
* Nonlinearity 0.5% typ. (20C

📥 Download Datasheet

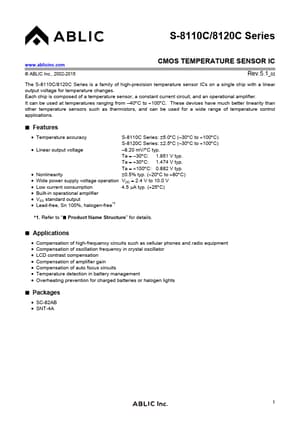

Preview of S-8110C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
S-8110C
Manufacturer
ABLIC
File Size
430.35 KB
Datasheet
S-8110C-ABLIC.pdf
Description
CMOS TEMPERATURE SENSOR
