S-8205A - Battery Protection

ABLIC

📥 Download Datasheet

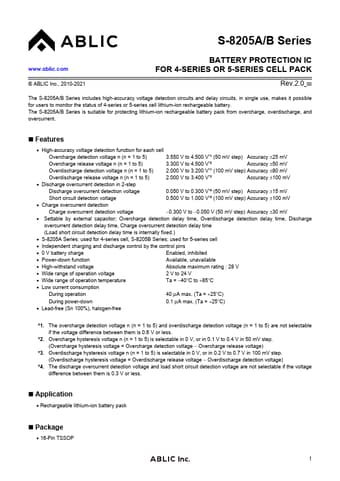

S-8205A Datasheet Preview — Preview of S-8205A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	S-8205A
Manufacturer	ABLIC ↗
File Size	823.30 KB
Description	Battery Protection
Datasheet	S-8205A-ABLIC.pdf

S-8205A Product details

Features

High-accuracy voltage detection function for each cell Overcharge detection voltage n (n = 1 to 5) 3.550 V to 4.500 V.
1 (50 mV step) Accuracy ±25 mV Overcharge release voltage n (n = 1 to 5) 3.300 V to 4.500 V.
2 Accuracy ±50 mV Overdischarge detection voltage n (n = 1 to 5) 2.000 V to 3.200 V.
1 (100 mV step) Accuracy ±80 mV Overdischarge release voltage n (n = 1 to 5) 2.000 V to 3.400 V.
3 Accuracy ±100 mV.
Discharge overcurrent detection in 2-step.
