S-82M1A - BATTERY PROTECTION IC

ABLIC

📥 Download Datasheet

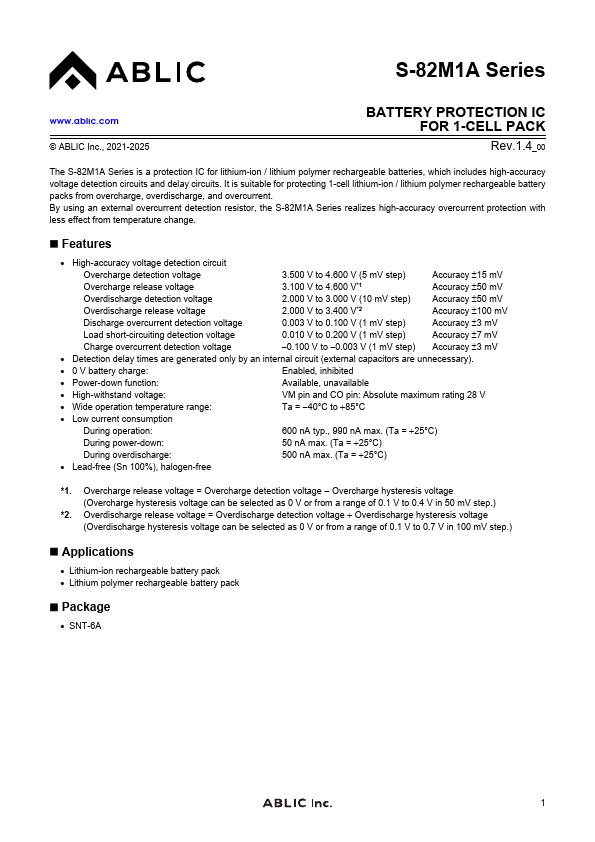

S-82M1A Datasheet Preview — Preview of S-82M1A PDF

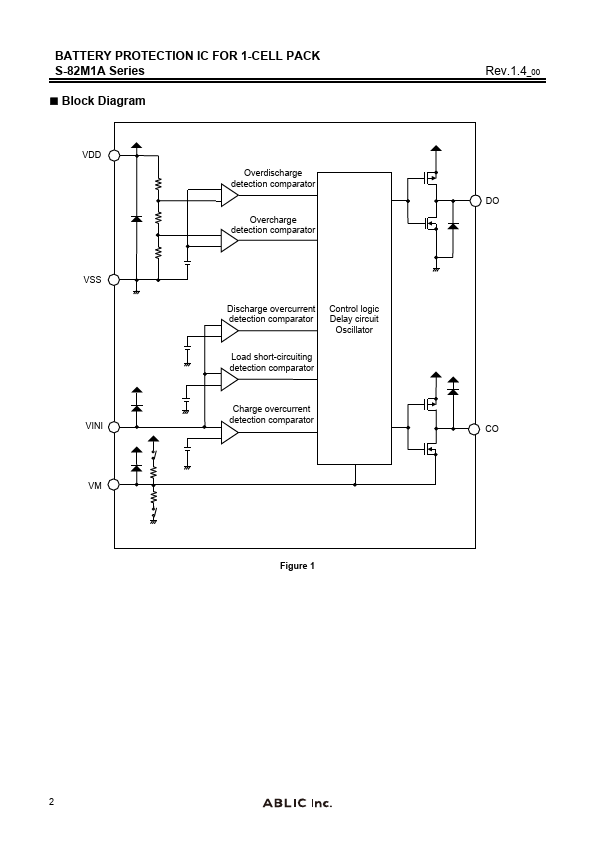

datasheet Preview Page 2

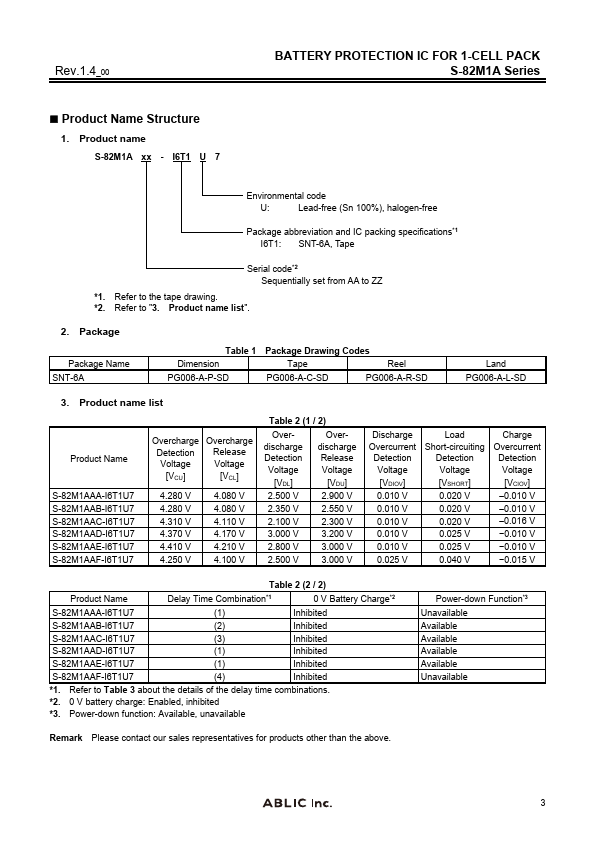

datasheet Preview Page 3

Datasheet Details

Part number	S-82M1A
Manufacturer	ABLIC
File Size	0.98 MB
Description	BATTERY PROTECTION IC
Datasheet	S-82M1A-ABLIC.pdf

S-82M1A Product details

Features

High-accuracy voltage detection circuit Overcharge detection voltage 3.500 V to 4.600 V (5 mV step) Accuracy ±15 mV Overcharge release voltage 3.100 V to 4.600 V.
1 Accuracy ±50 mV Overdischarge detection voltage 2.000 V to 3.000 V (10 mV step) Accuracy ±50 mV Overdischarge release voltage 2.000 V to 3.400 V.
2 Accuracy ±100 mV Discharge overcurrent detection voltage 0.003 V to 0.100 V (1 mV step) Accuracy ±3 mV Load short-circuiting detection voltage 0.010 V to.
