S-875039A, S-875077A VOLTAGE REGULATOR

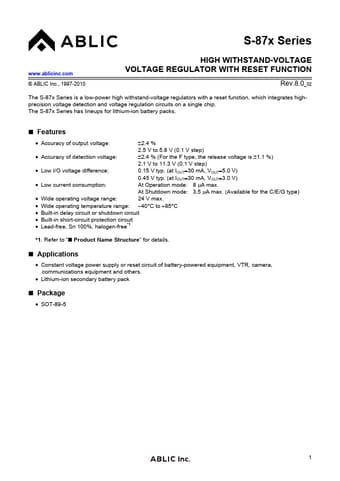

📥 Download Datasheet  Datasheet Preview Page 1

Description

S-87x Series www.ablicinc.com © ABLIC Inc., 1997-2010 HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION Rev.8.0_02 The S-87x Series is a.

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: S-875039A, S-875077A. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
S-875039A, S-875077A
Manufacturer
ABLIC
File Size
535.16 KB
Datasheet
S-875077A-ABLIC.pdf
Description
VOLTAGE REGULATOR
Note
This datasheet PDF includes multiple part numbers: S-875039A, S-875077A.
Please refer to the document for exact specifications by model.

Features

* Accuracy of output voltage: 2.4 % 2.5 V to 5.8 V (0.1 V step)
* Accuracy of detection voltage: 2.4 % (For the F type, the release voltage is 1.1 %) 2.1 V to 11.3 V (0.1 V step)
* Low I/O voltage difference: 0.15 V typ. (at IOUT30 mA, VOUT5.0 V) 0.45 V typ. (at IOUT30 mA,
