* Accuracy of output voltage: 2.4 % 2.5 V to 5.8 V (0.1 V step)
* Accuracy of detection voltage: 2.4 % (For the F type, the release voltage is 1.1 %) 2.1 V to 11.3 V (0.1 V step)
* Low I/O voltage difference: 0.15 V typ. (at IOUT30 mA, VOUT5.0 V) 0.45 V typ. (at IOUT30 mA,

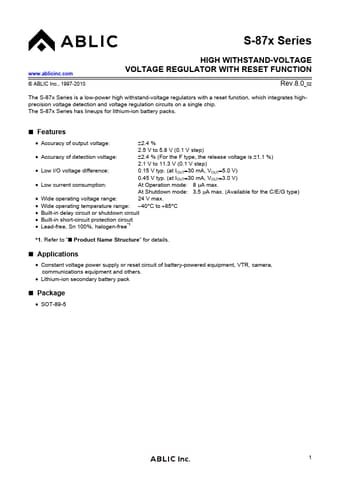

S-875041B Datasheet (535.16 KB)
S-875041B
ABLIC
535.16 KB
Voltage regulator.
S-87x Series
www.ablicinc.com © ABLIC Inc., 1997-2010
HIGH WITHSTAND-VOLTAGE VOLTAGE REGULATOR WITH RESET FUNCTION
Rev.8.0_02
The S-87x Series is a.
