S-875087F, S-875077A - VOLTAGE REGULATOR

ABLIC

Datasheet Details

Part number	S-875087F, S-875077A
Manufacturer	ABLIC
File Size	535.16 KB
Description	VOLTAGE REGULATOR

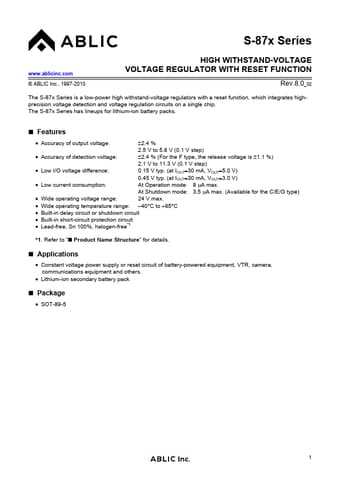

Datasheet	S-875077A-ABLIC.pdf
Note	This datasheet PDF includes multiple part numbers: S-875087F, S-875077A. Please refer to the document for exact specifications by model.

Accuracy of output voltage: 2.4 % 2.5 V to 5.8 V (0.1 V step).
Accuracy of detection voltage: 2.4 % (For the F type, the release voltage is 1.1 %) 2.1 V to 11.3 V (0.1 V step).
Low I/O voltage difference: 0.15 V typ. (at IOUT30 mA, VOUT5.0 V) 0.45 V typ. (at IOUT30 mA, VOUT3.0 V).
Low current consumption: At Operation mode: 8 A max. At Shutdown mode: 3.5 A max. (Available for the C/E/G type).
Wide operating voltage range: 24 V max.
Wide op.
