ADAM26P20, ADAM26P16 - 4-BIT SINGLE-CHIP MICROCONTROLLERS

ABOV

📥 Download Datasheet

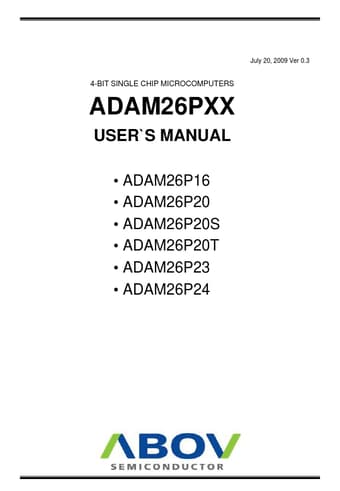

ADAM26P20 Datasheet Preview — This datasheet PDF includes multiple part numbers: ADAM26P20, ADAM26P16. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: ADAM26P20, ADAM26P16
Manufacturer: ABOV
File Size: 581.14 KB
Datasheet: ADAM26P16-ABOV.pdf
Description: 4-BIT SINGLE-CHIP MICROCONTROLLERS
Note: This datasheet PDF includes multiple part numbers: ADAM26P20, ADAM26P16.
Please refer to the document for exact specifications by model.

ADAM26P20 Product details

Features

Program memory (MTP).
2,048 bytes (2,048 x 8bit).
MTP (Multi Time programming) : 1K.
4, 2K.
2.
Data memory (RAM).
32 nibble (32 x 4bit).
3 levels of subroutine nesting.
Operating frequency.
2.4MHz ~ 4MHz.
Instruction cycle.
fOSC/48.
Stop mode.
Released stop mode by key input.
Built in Power-on Reset circuit.
Built in Transistor for I. R LED Drive.
IOL=250mA at VDD=3V and VO=0.3V.
Built in Low Voltage reset.
