MC96F6408A - CMOS single-chip 8-bit MCU

This page provides the datasheet information for the MC96F6408A, a member of the MC96F6508A CMOS single-chip 8-bit MCU family.

Datasheet Summary

Description

The MC96F6508A and MC96F6408A are an advanced CMOS 8-bit microcontroller with 8Kbytes of FLASH memory.

Theseare powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications.

Features

  • 8-bit Microcontroller With High Speed 8051 CPU.
  • Basic MCU Function.
  • 8Kbytes Flash Code Memory.
  • 256bytes SRAM.
  • Built-in Analog Function.
  • Power-On Reset and Low Voltage Detect Reset.
  • Internal 16 MHz RC oscillator (±1.5%,TA= 0°C ~ +50 °C).
  • Watchdog Timer RC oscillator (5kHz).
  • Peripheral Features.
  • UART, SIO.
  • LCD Driver (24Segment x 8Common).
  • I/O and Packages.
  • Up to 49 Programmable I/O lines with 52-PELL.

📥 Download Datasheet

Datasheet preview – MC96F6408A

Datasheet Details

Part number MC96F6408A
Manufacturer ABOV
File Size 2.33 MB
Description CMOS single-chip 8-bit MCU
Datasheet download datasheet MC96F6408A Datasheet
Additional preview pages of the MC96F6408A datasheet.

📁 Similar Datasheet

  • MC961 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC962 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC963 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC908 - Indoor and outdoor temperature gauge (MOSCASE)
  • MC9080-A102x - SMD Common mode choke coils (ueno)
  • MC9080-A501x - SMD Common mode choke coils (ueno)
  • MC9080-A801x - SMD Common mode choke coils (ueno)
  • MC9080-D102x - SMD Common mode choke coils (ueno)
  • MC9080-D152x - SMD Common mode choke coils (ueno)
  • MC9080-D601x - SMD Common mode choke coils (ueno)
Other Datasheets by ABOV

Full PDF Text Transcription

Click to expand full text

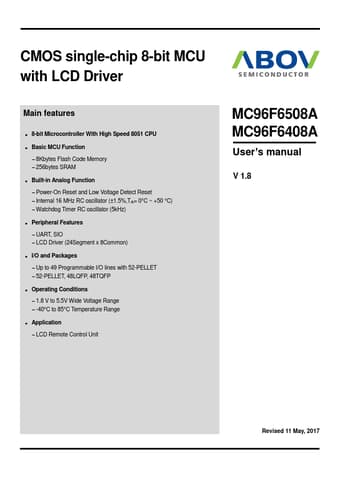

CMOS single-chip 8-bit MCU with LCD Driver Main features  8-bit Microcontroller With High Speed 8051 CPU  Basic MCU Function – 8Kbytes Flash Code Memory – 256bytes SRAM  Built-in Analog Function – Power-On Reset and Low Voltage Detect Reset – Internal 16 MHz RC oscillator (±1.5%,TA= 0°C ~ +50 °C) – Watchdog Timer RC oscillator (5kHz)  Peripheral Features – UART, SIO – LCD Driver (24Segment x 8Common)  I/O and Packages – Up to 49 Programmable I/O lines with 52-PELLET – 52-PELLET, 48LQFP, 48TQFP  Operating Conditions – 1.8 V to 5.5V Wide Voltage Range – -40°C to 85°C Temperature Range  Application – LCD Remote Control Unit MC96F6508A MC96F6408A User’s manual V 1.8 Revised 11 May, 2017 ABOV Semiconductor Co., Ltd. Revision history MC96F6508A/MC96F6408A Version 0.0 1.0 1.1 1.2 1.
