MC96F8208S - CMOS single-chip 8-bit MCU

Datasheet Summary

Description

The MC96F8208S is advanced CMOS 8-bit microcontroller with 16 Kbytes of FLASH.

This is powerful microcontroller which provides a highly flexible and cost effective solution to many embedded control applications.

Features

  • 8-bit Microcontroller With High Speed 8051 CPU.
  • Basic MCU Function 8Kbytes Flash Code Memory 512bytes SRAM.
  • Built-in Analog Function Power-On Reset and Low Voltage Detect Reset Internal 16MHz RC Oscillator (±1.5%, TA= 0 ~ +50°C) Watchdog Timer RC Oscillator (5kHz).
  • Peripheral Features 12-bit Analog to Digital Converter (10 inputs) UART 8-bit x 1-ch SPI 8-bit x 1-ch I2C 8-bit x 1-ch.
  • I/O and Packages Up to 18 Programmable I/O lines with 20 SOP 20/16 SOP, 20 PDIP, 20QFN P.

📥 Download Datasheet

Datasheet preview – MC96F8208S

Datasheet Details

Part number MC96F8208S
Manufacturer ABOV
File Size 2.32 MB
Description CMOS single-chip 8-bit MCU
Datasheet download datasheet MC96F8208S Datasheet
Additional preview pages of the MC96F8208S datasheet.

📁 Similar Datasheet

  • MC961 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC962 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC963 - (MC961 - MC963) INTEGRATED CIRCUITS (Motorola)
  • MC908 - Indoor and outdoor temperature gauge (MOSCASE)
  • MC9080-A102x - SMD Common mode choke coils (ueno)
  • MC9080-A501x - SMD Common mode choke coils (ueno)
  • MC9080-A801x - SMD Common mode choke coils (ueno)
  • MC9080-D102x - SMD Common mode choke coils (ueno)
  • MC9080-D152x - SMD Common mode choke coils (ueno)
  • MC9080-D601x - SMD Common mode choke coils (ueno)
Other Datasheets by ABOV

Full PDF Text Transcription

Click to expand full text

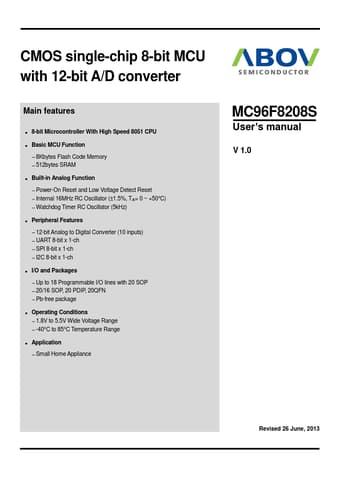

CMOS single-chip 8-bit MCU with 12-bit A/D converter Main features  8-bit Microcontroller With High Speed 8051 CPU  Basic MCU Function 8Kbytes Flash Code Memory 512bytes SRAM  Built-in Analog Function Power-On Reset and Low Voltage Detect Reset Internal 16MHz RC Oscillator (±1.5%, TA= 0 ~ +50°C) Watchdog Timer RC Oscillator (5kHz)  Peripheral Features 12-bit Analog to Digital Converter (10 inputs) UART 8-bit x 1-ch SPI 8-bit x 1-ch I2C 8-bit x 1-ch  I/O and Packages Up to 18 Programmable I/O lines with 20 SOP 20/16 SOP, 20 PDIP, 20QFN Pb-free package  Operating Conditions 1.8V to 5.5V Wide Voltage Range -40°C to 85°C Temperature Range  Application Small Home Appliance MC96F8208S User’s manual V 1.0 Revised 26 June, 2013 ABOV Semiconductor Co., Ltd. Revision history Version 0.
