Description
For VCXO configuration Voltage Control for VCXO
Output Enable (OE) or No Connect (N/C) GND
RF Output
Complimentary Output
Vdd
Top View
2.5 x 2.0 x 1.0 mm
Pin #
1
2 3 4 5 6
Pin Description For XO configuration
Output Enable (OE)
No Connect (N/C) for XO
GND RF Output Complimentary Output
Vdd
Bottom View
Recommended Land Pattern
Side View
Dimensions: mm
ABRACON IS ISO9001:2008
CE RTIFIED
Visit www.abracon.com for Terms & Conditions of Sale Revised: 07.01.14 30332 Esperanza, Rancho Santa M
Features
- +2.5V or +3.3V operation.
- -40°C to +85°C standard operating temperature range.
- Miniature size 2.5 x 2.0 x 1.0 mm Ceramic SMT Package.
- Short lead time.

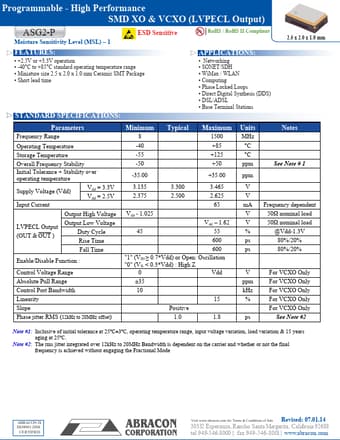

ASG2-P Datasheet
