ACE501 Datasheet - ACE Technology

ACE501 250mA CMOS Low Dropout Voltage Low consumption Regulator

ACE501 series is a group of positive voltage output, low power consumption, low dropout voltage, three terminal regulator. It can provide 250mA output current when input / output voltage differential drops to 400mV (Vin=4.0V. Vout=3.0V).The very low power consumption of ACE501 (lq=3.0uA) can greatly.

ACE501 Features

* Low Power Consumption: 3.0uA (Typ)

* Maximum Output Current: 250mA

* Small Dropout Voltage 170mV@100mA (Vout=3.0V) / 400mV@250mA (Vout

ACE501_ACETechnology.pdf

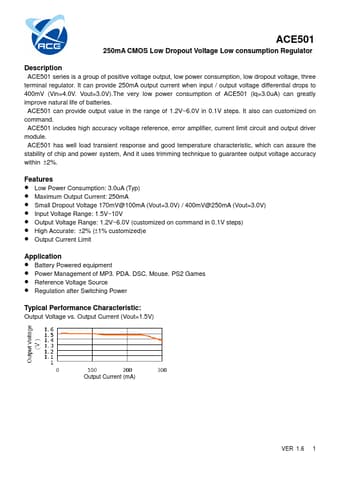

Preview of ACE501 PDF
ACE501 Datasheet Preview Page 2 ACE501 Datasheet Preview Page 3

Datasheet Details

Part number:

ACE501

Manufacturer:

ACE Technology

File Size:

516.60 KB

Description:

250ma cmos low dropout voltage low consumption regulator.
