aTCA-H8314 - 13U 14-slot Dual-Star Full-Mesh 40G AdvancedTCA Shelf

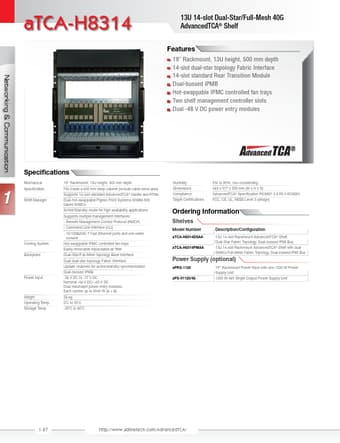

aTCA-H8314 Datasheet Preview — Preview of aTCA-H8314 PDF

Datasheet Details

Part number	aTCA-H8314
Manufacturer	ADLINK
File Size	821.55 KB
Description	13U 14-slot Dual-Star Full-Mesh 40G AdvancedTCA Shelf
Datasheet	aTCA-H8314-ADLINK.pdf

aTCA-H8314 Product details

Description

Configuration aTCA-H8314DSAA 13U 14-slot Rackmount AdvancedTCA® Shelf, Dual-Star Fabric Topology, Dual-bussed IPMI Bus aTCA-H8314PMAA 13U 14-slot Rackmount AdvancedTCA® Shelf with dual ShMCs Full-Mesh Fabric Topology, Dual-bussed IPMI Bus Power Supply (optional) aPRS-1120 aPS-91120/48 19” Rackmount Power Rack with one 1200 W Power Supply Unit 1200 W 48V Single Output Power Supply Unit 1-27 http://www.adlinktech.com/AdvancedTCA/ http://www.Datasheet4U.com Dimensions 2,8±0,1 445±0,6 2

Features

19” Rackmount, 13U height, 500 mm depth 14-slot dual-star topology Fabric Interface 14-slot standard Rear Transition Module Dual-bussed IPMB Hot-swappable IPMC controlled fan trays Two shelf management controller slots Dual -48 V DC power entry modules Networking & Communication 1 Specifications Mechanical Specification Shelf Manager Cooling System Backplane Power Input Weight Operating Temp. Storage Temp. 19” Rackmount, 13U height, 500 mm depth Fits inside a 600 mm deep cabinet (include ca.
